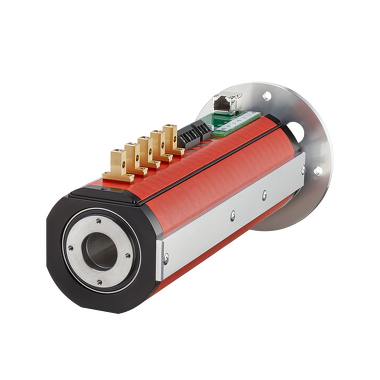

Slip ring SR085IE
Ürün Kısa Açıklaması
For Industry 4.0 / IIoT concepts.

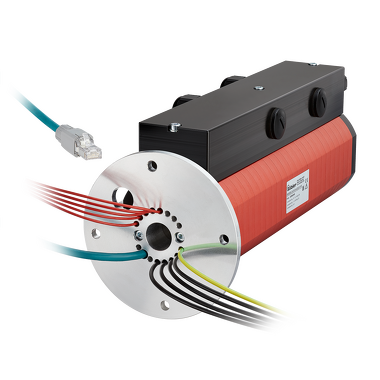

Reliable transmission of Industrial Ethernet is now also possible in the 85 mm size. For this purpose, the SR085IE slip rings from Kübler have been expanded with a Fast Ethernet module, which enables a transmission rate of up to 100 Mbit/s. The connection for data transmission is made as standard via a CAT5e cable with RJ45 plug connection. Customer-specific solutions can also be implemented on request, such as M-type industrial connectors.
Transmission of Industrial Ethernet among others:
and many more.
| Mechanical | |
|---|---|
| Dimension | 85 mm |
| Mounting type | Flange |
| Connection types | Cable Connectors |
| Working temperature | -35 °C … +85 °C |
| Protection level | IP64 |
| Rotational speed | 800 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
| Electrical | |
|---|---|
| Max. number of signal channels | 13 |
| Max. number of load channels | 13 |
| Load current transmission | 16 A, 240 V AC 10 A, 400 V AC/DC 20 A, 400 V AC/DC 25 A, 240 V AC/DC |
