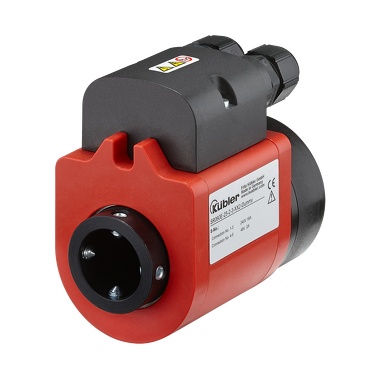

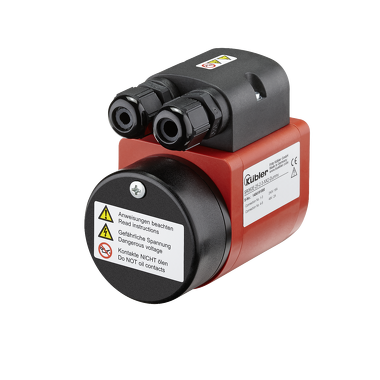

Slip ring SR060E
Ürün Kısa Açıklaması
- Heating and monitoring of sealing rollers
- Compact solution
- Long service life
- With connector
The flow pack specialist: the compact slip ring.
In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform.
The SR060E is a compact, economical slip ring for up to 3 power and 2 signal transmissions.
New innovative contact materials ensure long service life and extremely low-maintenance operation. The round shape with smooth surfaces and high protection level allows easy cleaning.

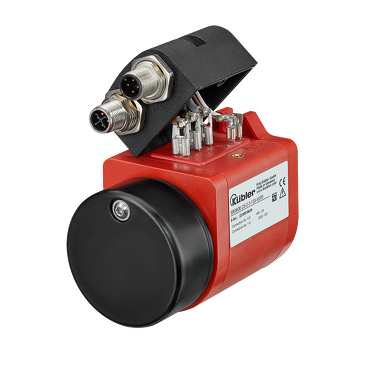

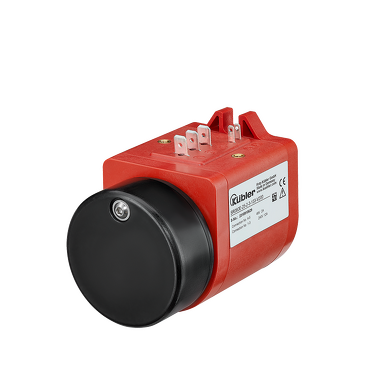

V200 version:
Additional connection options through implementation of M12 connectors for easiest mounting and maintenance.
| Mechanical | |
|---|---|
| Dimension | 60 mm |
| Mounting type | 20 mm Hollow shaft, through 22 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through |
| Working temperature | 0 °C … +75 °C |
| Protection level | IP64 |
| Rotational speed | 500 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
| Electrical | |
|---|---|
| Max. number of signal channels | 2 |
| Max. number of load channels | 3 |
| Load current transmission | 16 A, 240 V AC 20 A, 240 V AC/DC |
