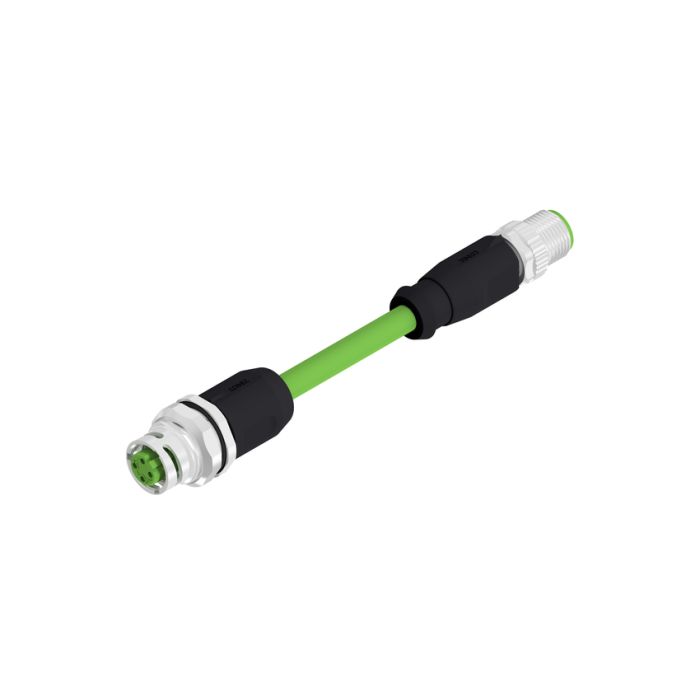

SAL-MB12D-RFKH4.2-12D-RS4.2-1,5/G6/A1002
Ürün Kısa Açıklaması
M
12
x
1
D-coded
Overmoulded Connectors
Female connector axial
Industrial Ethernet
Panel mount connector with cable
4- pos.
Shielded
1,5 m
AWG
22
TPU ULSeries M
12 Bayonet locking
Back panel mounting
General Data
| Product type | Series M12 Bayonet locking |
| Style | Overmoulded Connectors |
| Performance | Ethernet 100 MHz |
| Bus systems | Industrial Ethernet |
| Size A-side | M12x1 |
| Size B-side [e.g. M8, M12, 7/8″ etc.] | M12x1 |
| Design | Panel mount connector with cable |
| Size/Number of positions | 4- pos. |
| Coding | D-coded |
| Type A-side [ Female, Male] | Female connector axial |
| Type B-side [Female, male] | Male connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | M12 Bayonet/screwable |
| Length cable/wire | 1,5 m |
| IP range A-side | IP67 |
| IP range B-side | IP67 |
Technical Data
| Working voltage signal | 160 V |
| Current rating signal | 4 A at +40°C |
| Shielding | Shielded |
| Cable quality [e.g. PP, PVC, TPE etc.] | TPU UL |
| Wire cross section | AWG22 |
Material Data
No data available.
