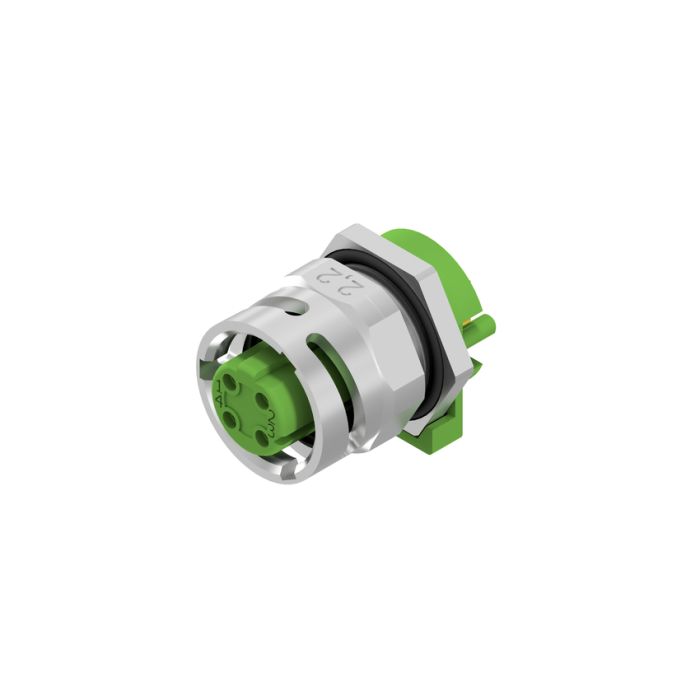

Series M
12 Bayonet locking
Sockets
Industrial Ethernet
M
12
x
14- pos.
5,5 mm
Back panel mounting, panel thickness 2,2 mm
Solder pin straight
D-coded
Shielded
Female connector axial
| Product type | Series M12 Bayonet locking |
| Style | Sockets |
| Bus systems | Industrial Ethernet |
| Size A-side | M12x1 |
| Design | Sockets |
| Size/Number of positions | 4- pos. |
| Coding | D-coded |
| Type A-side [ Female, Male] | Female connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting, panel thickness 2,2 mm |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Installation height | 5,5 mm |
| Screw connection [e.g. PG9, M16 etc.] | M12x1 |
| Locking type | M12 Bayonet/screwable |
| IP range A-side | IP65/IP67/IP69K |
| Working voltage signal | 250 V |
| Current rating signal | 4 A at +40°C |
| min. working temperature | -40° C |
| max. working temperature | +85° C |
| Shielding | Shielded |
