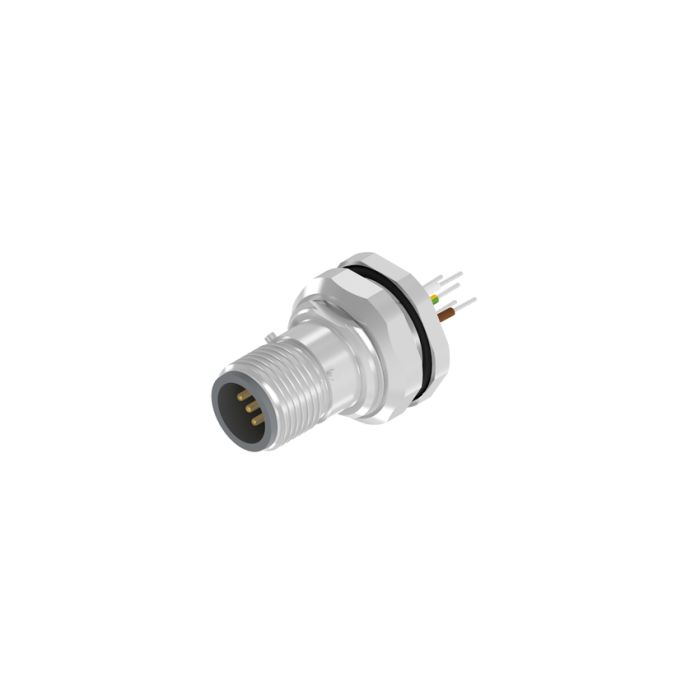

SAL-MB12-FSH5-0,5
Ürün Kısa Açıklaması
Series M
12 Bayonet locking
Sockets
M
12
x
15- pos.
Back panel mounting
Wire
A-coded
Shielded
Male connector axial
0,5 m
General Data
| Product type | Series M12 Bayonet locking |
| Style | Sockets |
| Size A-side | M12x1 |
| Design | Sockets |
| Type A-side [ Female, Male] | Male connector axial |
| Size/Number of positions | 5- pos. |
| Length cable/wire | 0,5 m |
| Coding | A-coded |
| IP range A-side | IP67 |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | M12 Bayonet/screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Wire |
Technical Data
| Shielding | Shielded |
| min. working temperature | -30° C |
| max. working temperature | +85° C |
| Working voltage signal | 60 V |
| IP rating | IP67 |
| Current rating signal | 4 A at +40°C |
Material Data
No data available.
