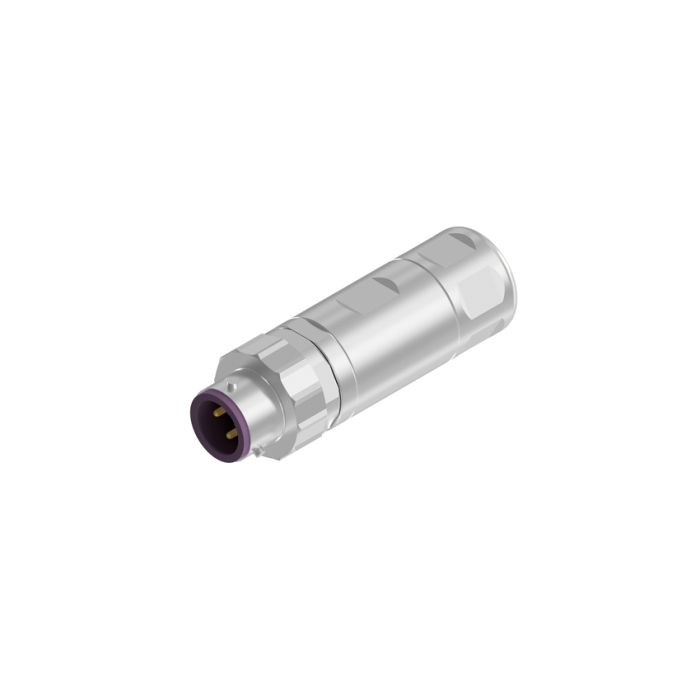

Series M
12 Bayonet locking
Male connector axial
Crimp
M
12
x
14- pos.
Shielded
B-coded
Field attachable connectors
0,34 mm² – 1,0 mm²
| Product type | Series M12 Bayonet locking |
| Style | Field attachable connectors |
| Size A-side | M12x1 |
| Size/Number of positions | 4- pos. |
| Coding | B-coded |
| Type A-side [ Female, Male] | Male connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | cable connector |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Crimp |
| Working voltage signal | 250 V |
| Current rating signal | 4 A at +40°C |
| min. working temperature | -40° C |
| max. working temperature | +85° C |
| Shielding | Shielded |
| Wire cross section | 0,34 mm² – 1,0 mm² |
