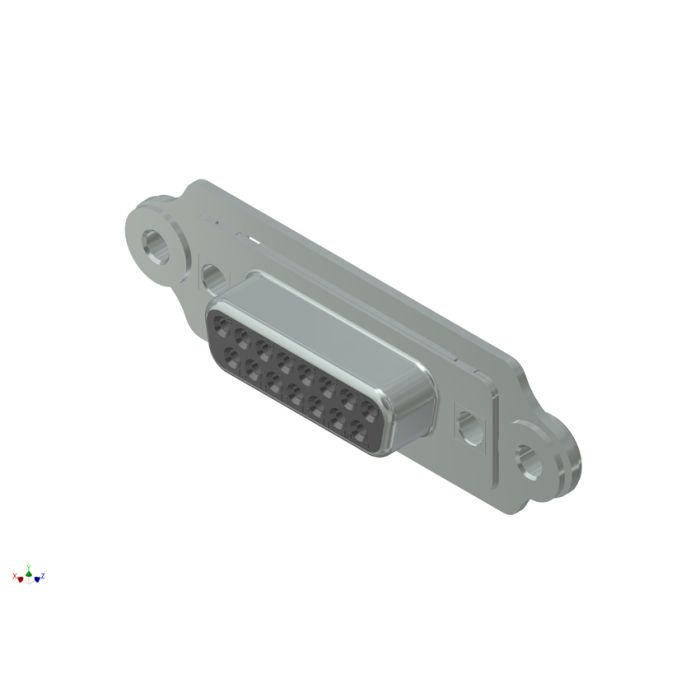

Part No: DSS2XSMAB01X
General Data
| Dielectric with standing voltage signal | 1000 V |
| Working voltage signal | 125 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A |
| Insertion force | <30 N |
| Extraction force | <30 N |
| Contact resistance standard | 10 mOhm |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
Technical Data
| Insulator material | PBT GF UL 94 V-0 |
| Insulator color | Black |
| Shell material | Steel |
| Shell plating | Tin |
| Signal contact material | Copper alloy |
| Plating signal contact (termination area) | Gold over nickel |
| Plating signal contact (mating area) | Gold over nickel |
| Mounting option material | Steel |
| Plating mounting option | Nickel |
