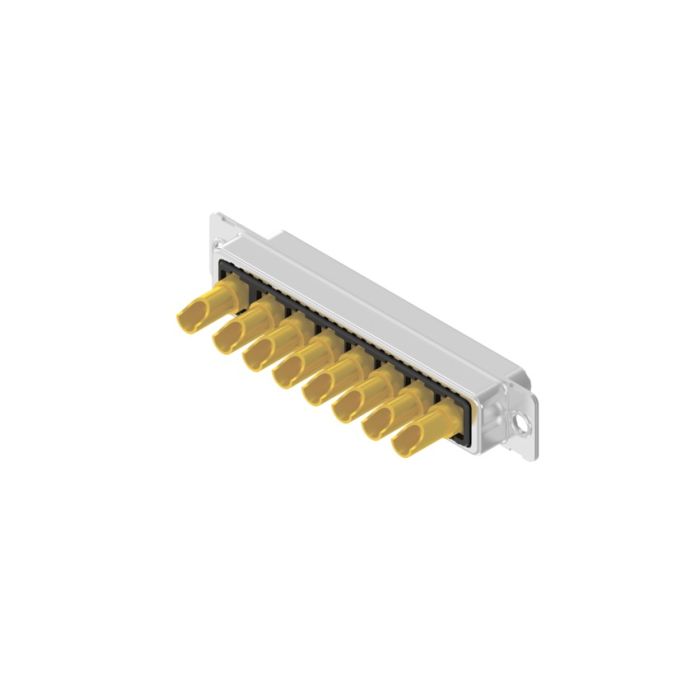

Filter Combination D-SUB
8
W
8 [○○○○○○○○]Socket
C-Filter
100 n
FThrough hole
| Contact type | Socket |
| Size/Number of positions | 8W8 [○○○○○○○○] |
| Termination power contact | Solder cup |
| Hardware options termination side | Through hole |
| Mounting style | Straight |
| Dielectric with standing voltage power | 707 V DC |
| Capacitor value power contact | 100 nF |
| Power contact cross section | AWG 10- 12 |
| Working voltage power | 100 V DC |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating power | 30 A |
| Insertion force | 56 N |
| Extraction force | 56 N |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Filter type | C |
