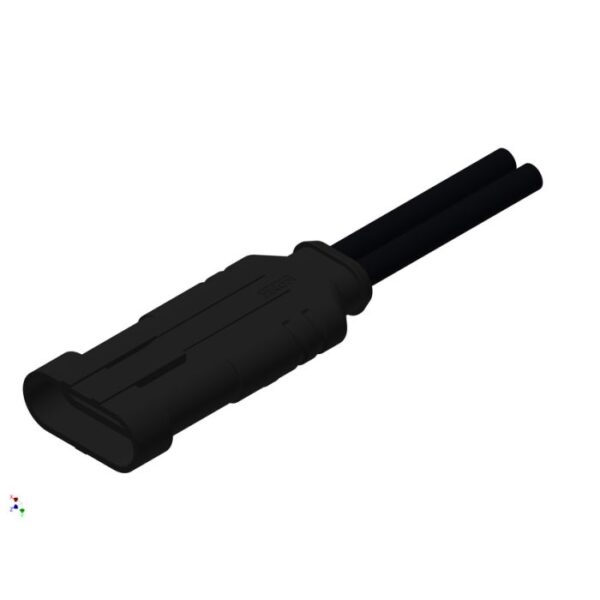

Part No: 55-01149
Ürün Kısa Açıklaması
Super
Seal 1.
5
Plug
4- pos.
without protection circuit
1 m
General Data
| Type | SuperSeal 1.5 |
| Style | Double outlet |
| Size A-side | Superseal |
| Contact type | Plug |
| Size/Number of positions | 4- pos. |
| Length cable/wire | 1 m |
| Circuit | without protection circuit |
| Termination protection hose | hose nozzle |
Technical Data
| Cable quality [e.g. PP, PVC, TPE etc.] | PUR |
| Mating cycles | 50 |
| Wire cross section | 2 x 4 x 0,75 mm² |
| Insulation resistance | >=100M Ohm |
| Cable quality | Li9Y11Y |
| Cable color | Black |
| min. working temperature | -25° C (moving) / -40°C (fixed) |
| max. working temperature | +80° C |
| Working voltage signal | 24 V DC |
| IP rating | IP67/IP69K in mated condition |
| Current rating signal | 7 A at +40°C |
Material Data
No data available.
