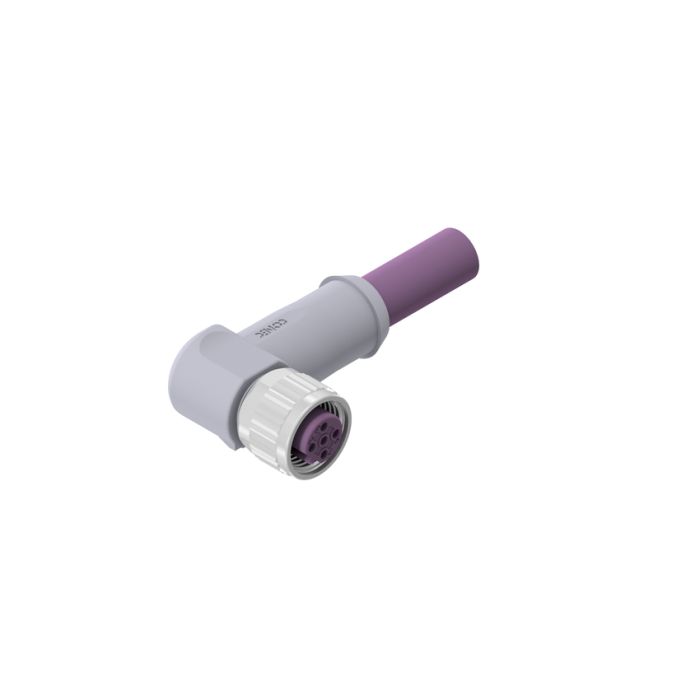

Part No: 43-12482
Ürün Kısa Açıklaması
M
12
x
1
B-coded
Overmoulded Connectors
Female connector angled
Profibus DPsingle ended
4- pos.
Shielded
10 m
2
x
AWG
24
TPE high flexible [PUR, Profibus DP]BUS Systems
General Data
| Design | single ended |
| Size A-side | M12x1 |
| Coding | B-coded |
| Type A-side [ Female, Male] | Female connector angled |
| Size/Number of positions | 4- pos. |
| Length cable/wire | 10 m |
| IP range A-side | IP67 |
| Locking type | Screwable |
| Style | Overmoulded Connectors |
| Bus systems | Profibus DP |
| Product type | BUS Systems |
| Configuration A-side | angled |
Technical Data
| Shielding | Shielded |
| Cable quality | O2YS(ST)C11Y |
| Wire cross section | 2xAWG24 |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 160 V |
| IP rating | IP67 |
| Current rating signal | 4 A at +40°C |
| Sealing material | FPM |
| Cable quality [e.g. PP, PVC, TPE etc.] | TPE high flexible [PUR, Profibus DP] |
| Mating cycles | >=100 |
| Recommended torque | 0,6 Nm |
| Insulation resistance | >=100M Ohm |
| Cable color | Violet (RAL4001) |
Material Data
No data available.
