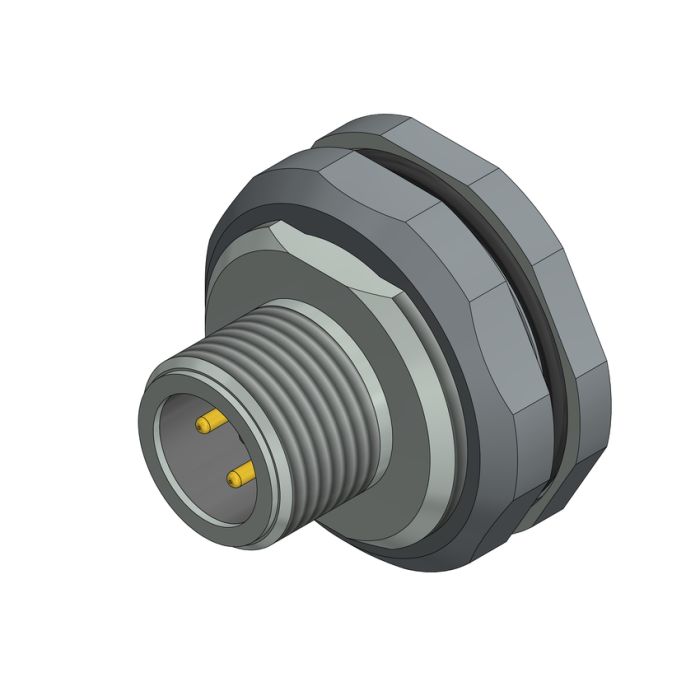

Part No: 43-02691
Ürün Kısa Açıklaması
Sockets
Male connector axial
M
12
x
14- pos.
Back panel mounting
Crimp
A-coded
Unshieldedmax.
0,5 mm²
General Data
| Style | Sockets |
| Size A-side | M12x1 |
| Design | Standard |
| Size/Number of positions | 4- pos. |
| Contact type | Male connector axial |
| Coding | A-coded |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Crimp |
| Screw connection [e.g. PG9, M16 etc.] | M12x1 |
Technical Data
| Shielding | Unshielded |
| Wire cross section | max. 0,5 mm² |
| min. working temperature | -20° C |
| max. working temperature | +85° C |
| Working voltage signal | 250 V |
| IP rating | IP67 in mated condition |
| Current rating signal | 4 A at +40°C |
| Sealing material | NBR |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
