BUS Systems
Sockets
Female connector axial
Device
Net
M
12
x
15- pos.
Back panel mounting
Wire
A-coded
Unshielded
AWG
240,5 m

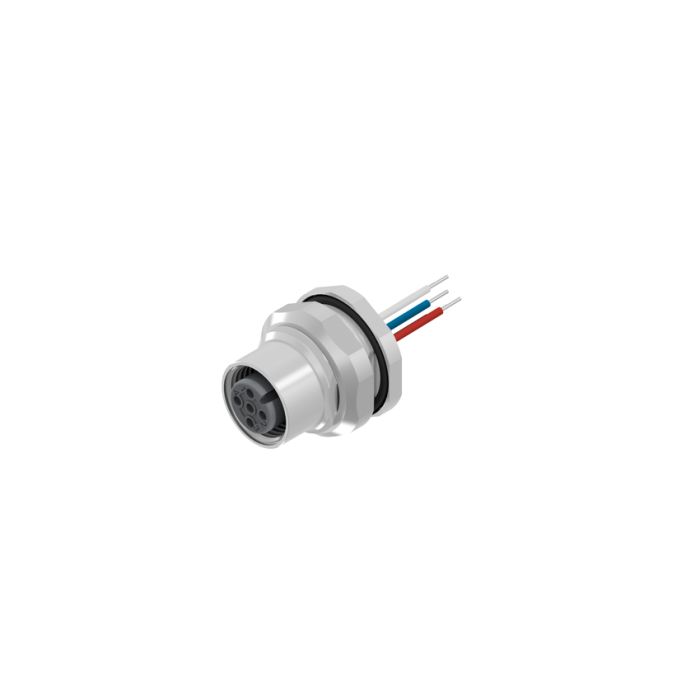

| Size A-side | M12x1 |
| Coding | A-coded |
| Size/Number of positions | 5- pos. |
| Length cable/wire | 0,5 m |
| Contact type | Female connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Wire |
| Screw connection [e.g. PG9, M16 etc.] | M16x1,5 |
| Style | Sockets |
| Bus systems | DeviceNet |
| Product type | BUS Systems |
| Configuration A-side | axial |
| Shielding | Unshielded |
| Wire cross section | AWG24 |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 60 V |
| IP rating | IP67 |
| Current rating signal | 4 A at +40°C |
| Sealing material | FPM |
| Mating cycles | >=100 |
| Wire isolation material | PVC |
| Recommended torque | 0,6 Nm |
| Insulation resistance | >=100M Ohm |
