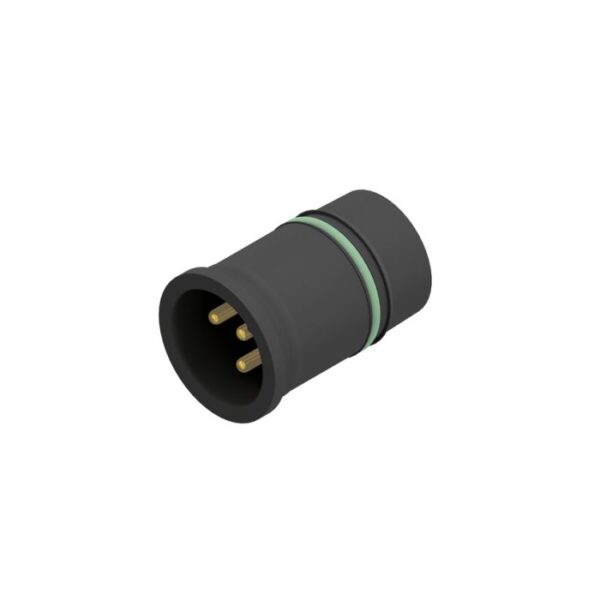

Einbaustecker/ -kupplung
M
12
x
1
Male connector axial
Plastic
5- pos.
A-coded-cod.
| Size A-side | M12x1 |
| Design | Standard |
| Size/Number of positions | 5- pos. |
| Contact type | Male connector axial |
| Housing material | Plastic |
| Coding | A-coded |
| Mounting options [e.g. front/back panel mounting etc.] | with O-Ring |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder cup |
| Product type | Einbaustecker/ -kupplung |
| Shielding | Unshielded |
| min. working temperature | -40 °C [UL: -40 ° C] fest |
| max. working temperature | +130 °C [UL: +130 ° C] fest |
| Pollution degree | 3/2 |
| Working voltage signal | 60 V |
| IP rating | IP67 |
| Current rating signal | 4 A at +40°C |
| Sealing material | FPM |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
