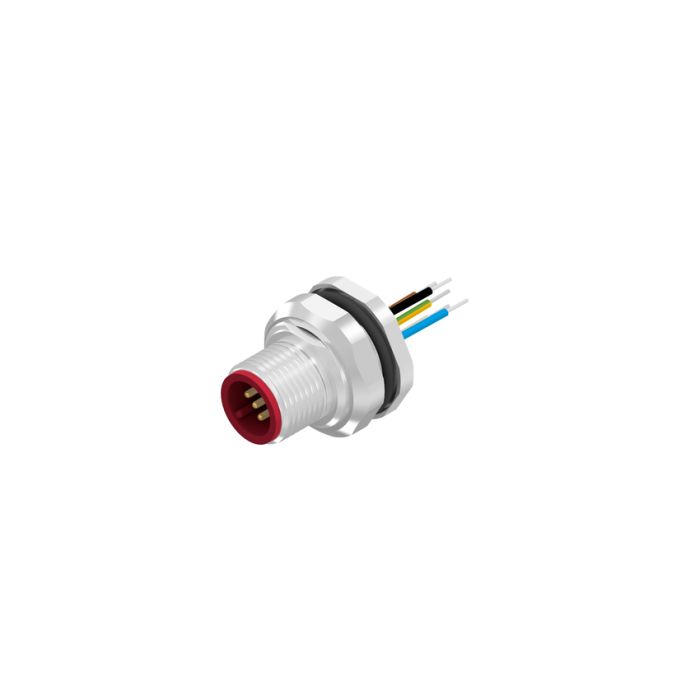

Part No: 43-01132
Ürün Kısa Açıklaması
High Temperature
Sockets
M
12
x
15- pos.
Back panel mounting
Wire
A-coded
AWG
24
Male connector axial
0,5 m
General Data
| Product type | High Temperature |
| Style | Sockets |
| Design | Sockets |
| Size/Number of positions | 5- pos. |
| Size A-side | M12x1 |
| Coding | A-coded |
| Type A-side [ Female, Male] | Male connector axial |
| IP range A-side | IP67 |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Wire |
| Screw connection [e.g. PG9, M16 etc.] | M16x1,5 |
| Length cable/wire | 0,5 m |
Technical Data
| Working voltage signal | 60 V |
| Current rating signal | 4 A at +40°C |
| min. working temperature | -30° C |
| max. working temperature | +100°C bis zu 30.000h, +125°C bis zu 8.000h, +150°C bis zu 2000h |
| Wire cross section | AWG24 |
Material Data
No data available.
