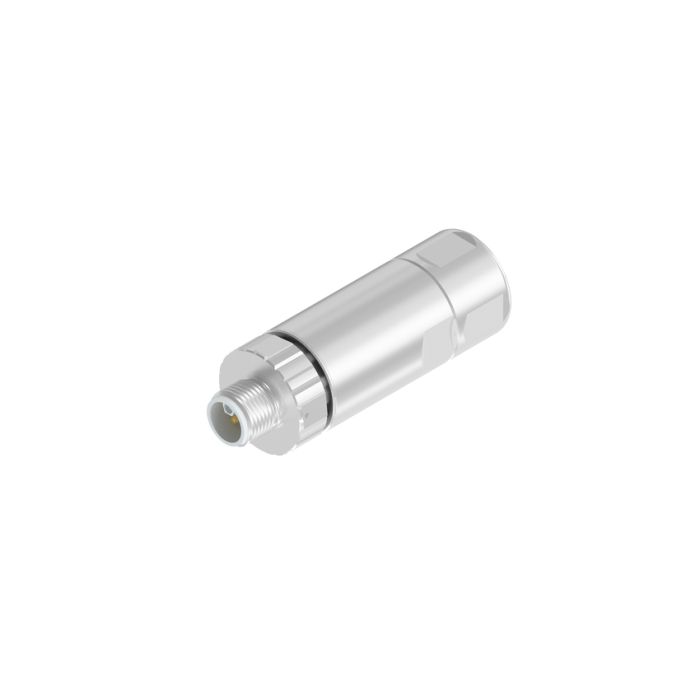

Part No: 43-00502
Ürün Kısa Açıklaması
Power connectors
Male connector axial
Screw Termination
M
12
x
14-pos+FEUnshielded
Field attachable connectors
L-coded
General Data
| Product type | Power connectors |
| Style | Field attachable connectors |
| Size A-side | M12x1 |
| Size/Number of positions | 4-pos+FE |
| Coding | L-coded |
| Type A-side [ Female, Male] | Male connector axial |
| IP range A-side | IP67 |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
Technical Data
| Working voltage signal | 63 V |
| Current rating signal | 16 A |
| min. working temperature | -40° C |
| max. working temperature | +105° C |
| Shielding | Unshielded |
| Wire cross section | 0,75 mm² – 2,5 mm² |
Material Data
No data available.
