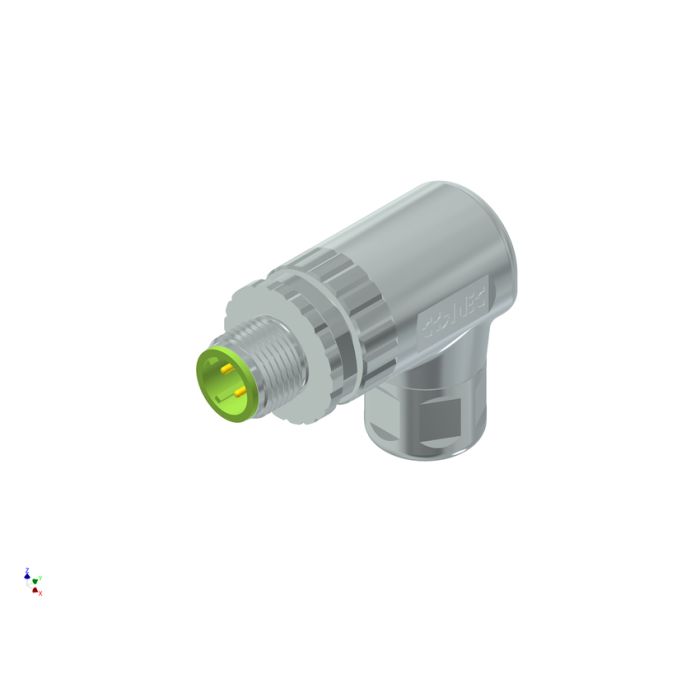

Part No: 43-00465
Ürün Kısa Açıklaması
BUS Systems
Male connector angled
Screw Termination
M
12
x
1
Industrial Ethernet
4- pos.
Shielded
Zinc die cast
D-coded
Field attachable connectorsmax.
1,5 mm²
General Data
| Product type | BUS Systems |
| Style | Field attachable connectors |
| Size A-side | M12x1 |
| Coding | D-coded |
| Type A-side [ Female, Male] | Male connector angled |
| Size/Number of positions | 4- pos. |
| Bus systems | Industrial Ethernet |
| Performance | Industrial Ethernet |
| Contact type | Male connector angled |
| IP range A-side | IP67 |
| Mounting options [e.g. front/back panel mounting etc.] | cable connector |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
| Screw connection [e.g. PG9, M16 etc.] | M12x1 |
| Configuration A-side | angled |
Technical Data
| Shielding | Shielded |
| Wire cross section | max. 1,5 mm² |
| min. working temperature | -40° C |
| max. working temperature | +85° C |
| Pollution degree | 3/2 |
| Working voltage signal | 250 V |
| IP rating | IP67 in connected condition |
| Current rating signal | 7,5 A at +40°C |
| Sealing material | Elastomere |
| Mating cycles | >=100 |
| Recommended torque | 0,6 Nm |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
