Part No: 43-00462
Ürün Kısa Açıklaması

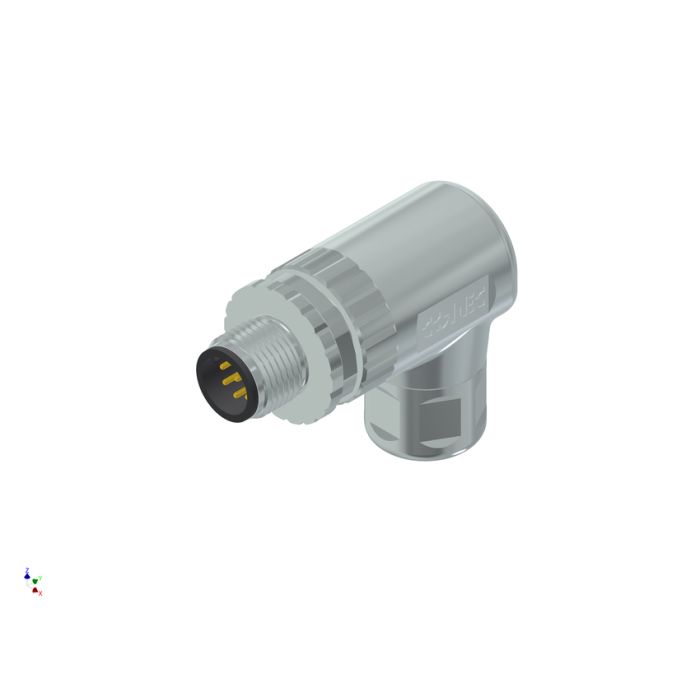

Connectors field attachable
Male connector angled
Screw Termination
M
12
x
18-pos.
Shielded
Zinc die cast
General Data
| Product type | Connectors field attachable |
| Style | Field attachable connectors |
| Size A-side | M12x1 |
| Coding | A-coded |
| Type A-side [ Female, Male] | Male connector angled |
| Size/Number of positions | 8-pos. |
| IP range A-side | IP67 |
| Mounting options [e.g. front/back panel mounting etc.] | cable connector |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
Technical Data
| Shielding | Shielded |
| Wire cross section | 0,5 mm² |
| min. working temperature | -40° C |
| max. working temperature | +85° C |
| Pollution degree | 3/2 |
| Working voltage signal | 30 V |
| IP rating | IP67 in connected condition |
| Current rating signal | 2A at +40°C |
| Sealing material | Elastomere |
| Mating cycles | >=100 |
| Recommended torque | 0,6 Nm |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
