Part No: 43-00341
Ürün Kısa Açıklaması

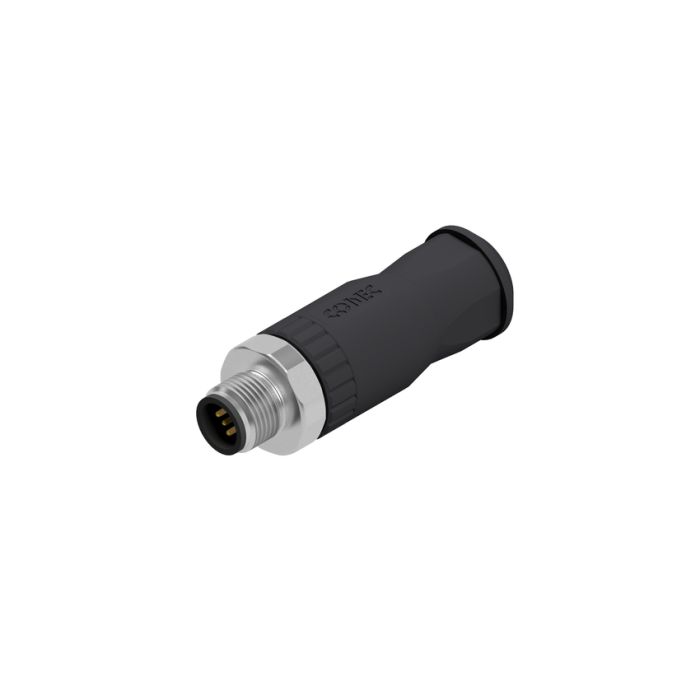

Male connector axial
Screw Termination
M
12
x
14- pos.
Screwable
Unshielded
Stainless Steel 1.
4404
General Data
| Size A-side | M12x1 |
| Coding | A-coded |
| Size/Number of positions | 4- pos. |
| Contact type | Male connector axial |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
Technical Data
| Shielding | Unshielded |
| Wire cross section | 1,5 mm² |
| min. working temperature | -30° C |
| max. working temperature | +85° C |
| Pollution degree | 3/2 |
| Working voltage signal | 250 V |
| IP rating | IP67 |
| Current rating signal | 7,5 A at +40°C |
| Sealing material | FKM |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
