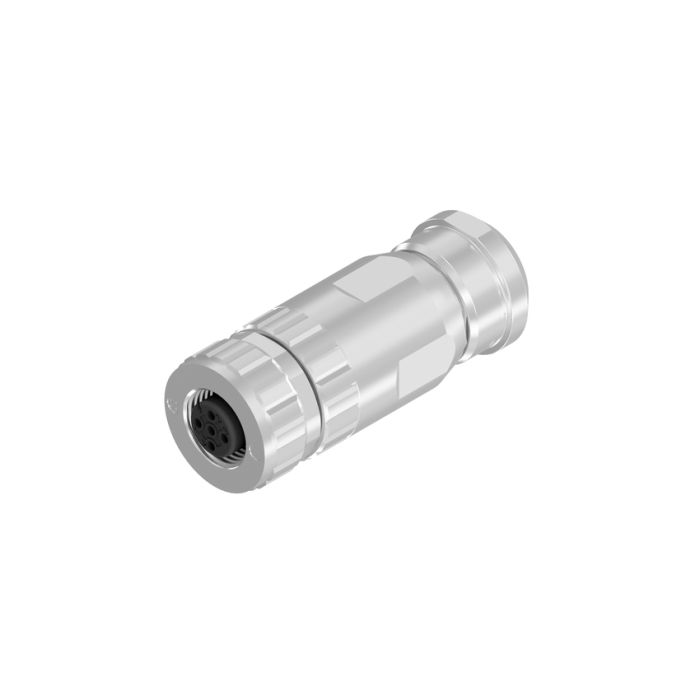

Part No: 43-00114
Ürün Kısa Açıklaması
Connectors field attachable
Female connector axial
Screw Termination
M
12
x
15- pos.
Screwable
Shielded
Zinc die cast
General Data
| Product type | Connectors field attachable |
| Style | Field attachable connectors |
| Size A-side | M12x1 |
| Coding | A-coded |
| Type A-side [ Female, Male] | Female connector axial |
| Size/Number of positions | 5- pos. |
| Contact type | Female connector axial |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
| Configuration A-side | axial |
Technical Data
| Shielding | Shielded |
| Wire cross section | max. 1,5 mm² |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 60 V |
| IP rating | IP67 |
| Current rating signal | 4 A at +40°C |
| Sealing material | Elastomere |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
