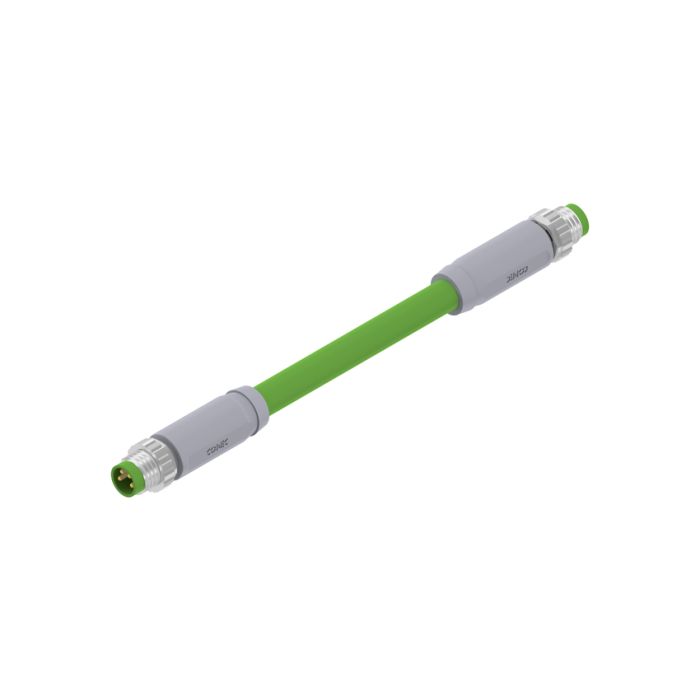

Part No: 42-12258
Ürün Kısa Açıklaması
M
8
x
1
A-coded
Overmoulded Connectors
Male connector axial
Industrial Ethernet
Double ended
4- pos.
Shielded
1 m
2
x
2
x
AWG
22
TPU shielded SFTPBUS Systems
General Data
| Design | Double ended |
| Size A-side | M8x1 |
| Coding | A-coded |
| Size B-side [e.g. M8, M12, 7/8″ etc.] | M8x1 |
| Type A-side [ Female, Male] | Male connector axial |
| Type B-side [Female, male] | Male connector axial |
| Size/Number of positions | 4- pos. |
| Length cable/wire | 1 m |
| IP range A-side | IP67 |
| IP range B-side | IP67 |
| Locking type | Screwable |
| Style | Overmoulded Connectors |
| Bus systems | Industrial Ethernet |
| Product type | BUS Systems |
| Configuration A-side | axial |
| Configuration B-side | axial |
Technical Data
| Shielding | Shielded |
| Cable quality | 2YH(ST)C11Y |
| Wire cross section | 2x2xAWG22 |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 30 V |
| IP rating | IP67 |
| Sealing material | FPM |
| Cable quality [e.g. PP, PVC, TPE etc.] | TPU shielded SFTP |
| Mating cycles | >=100 |
| Recommended torque | 0,4 Nm |
| Insulation resistance | >=100M Ohm |
| Cable color | Green (RAL6018) |
Material Data
No data available.
