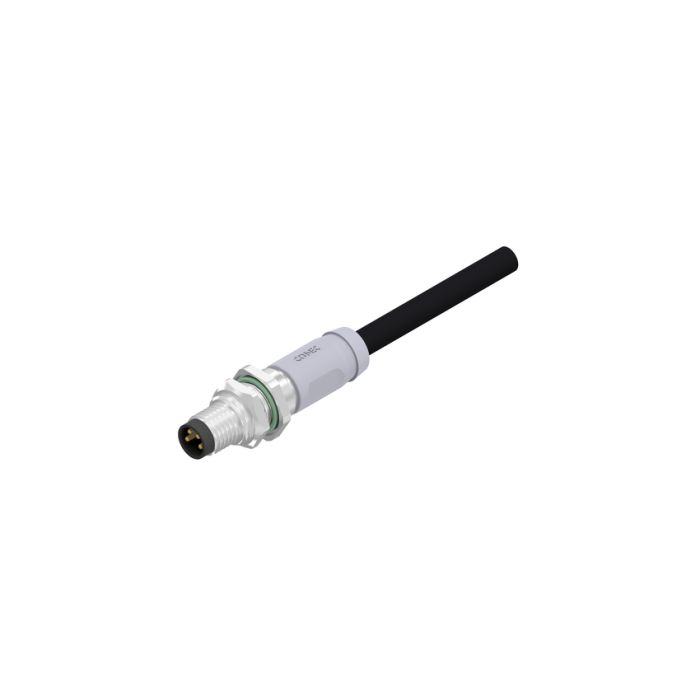

M
8
x
1
A-coded
Single ended
Male connector axial
Panel mount connector with cable
4- pos.
Shielded
1,5 m
0,25 mm²TPU ULSockets
Back panel mounting
| Product type | Sockets |
| Style | Single ended |
| Design | Panel mount connector with cable |
| Size A-side | M8x1 |
| Size/Number of positions | 4- pos. |
| Type A-side [ Female, Male] | Male connector axial |
| Length cable/wire | 1,5 m |
| Coding | A-coded |
| IP range A-side | IP67 |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | Screwable |
| Screw connection [e.g. PG9, M16 etc.] | M10x1 |
| Shielding | Shielded |
| Cable quality | Li9Y11Y |
| Wire cross section | 0,25 mm² |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 48 V AC / 60 V DC |
| IP rating | IP67 |
| Current rating signal | 3 A at +40°C |
| Sealing material | FKM |
| Cable quality [e.g. PP, PVC, TPE etc.] | TPU UL |
| Mating cycles | >=100 |
| Recommended torque | 1- 1,2 Nm |
| Insulation resistance | >=100M Ohm |
| Cable color | Black |
