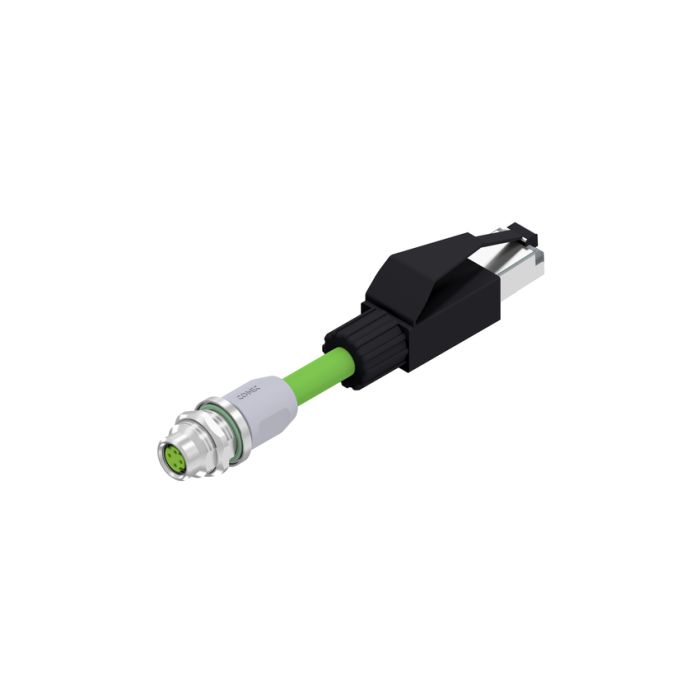

Part No: 42-01662
Ürün Kısa Açıklaması
M
8
x
1
D-coded
Patch cord
Female connector axial
Industrial Ethernet
Panel mount connector with cable
4-pos.
+PEShielded
1,5 m
2
x
2
x
AWG
22
PUR shielded, Cat 5
e
BUS Systems
Back panel mounting
General Data
| Product type | BUS Systems |
| Style | Patch cord |
| Performance | Cat 5e |
| Bus systems | Industrial Ethernet |
| Size A-side | M8x1 |
| Design | Panel mount connector with cable |
| Size/Number of positions | 4-pos.+PE |
| Coding | D-coded |
| Type A-side [ Female, Male] | Female connector axial |
| IP range A-side | IP67 |
| Size B-side [e.g. M8, M12, 7/8″ etc.] | RJ45 |
| Type B-side [Female, male] | Male connector axial |
| IP range B-side | IP20 |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Screw connection [e.g. PG9, M16 etc.] | M8x1 |
| Length cable/wire | 1,5 m |
Technical Data
| Working voltage signal | 30 V |
| Current rating signal | 350 mA ati 40°C |
| min. working temperature | -30° C |
| max. working temperature | +70°C |
| Shielding | Shielded |
| Cable quality [e.g. PP, PVC, TPE etc.] | PUR shielded, Cat 5e |
| Wire cross section | 2x2xAWG22 |
Material Data
No data available.
