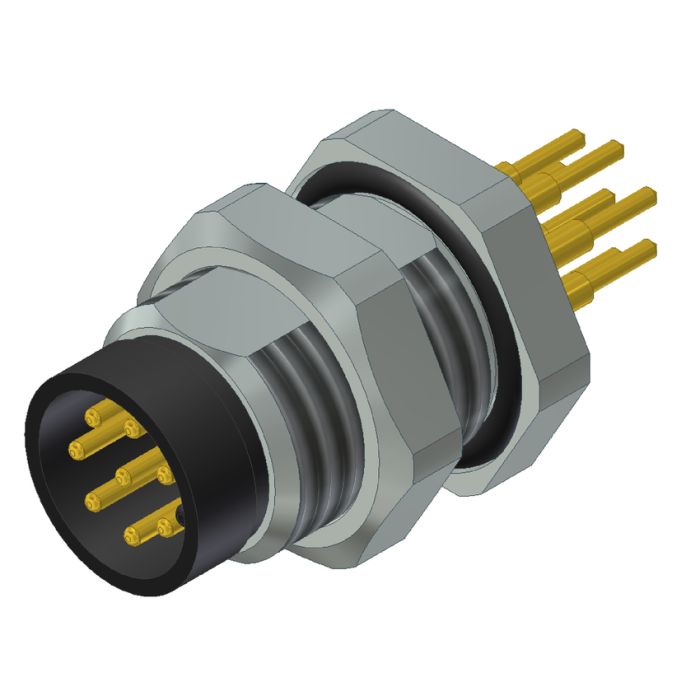

Sockets
Male connector axial
M
8
x
18-pos.
5,5 mm
Back panel mounting
Solder pin straight
A-coded
Unshielded
| Style | Sockets |
| Size A-side | M8x1 |
| Size/Number of positions | 8-pos. |
| Contact type | Male connector axial |
| Coding | A-coded |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Installation height | 5,5 mm |
| Screw connection [e.g. PG9, M16 etc.] | M8x1 |
| Shielding | Unshielded |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 30 V |
| IP rating | IP67 in mated condition |
| Current rating signal | 1,5 A bei +40°C |
| Sealing material | NBR |
| Mating cycles | >=100 |
| Recommended torque | 0,6- 0,8 Nm |
| Insulation resistance | >=100M Ohm |
