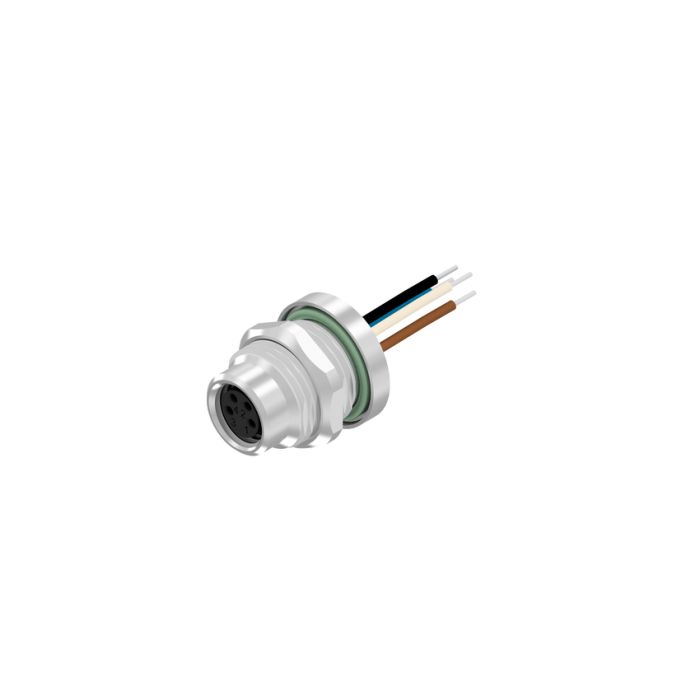

Sockets
Female connector axial
M
8
x
14- pos.
Back panel mounting
Wire
A-coded
Unshielded
AWG
24
| Style | Sockets |
| Size A-side | M8x1 |
| Size/Number of positions | 4- pos. |
| Length cable/wire | 0,2 m |
| Contact type | Female connector axial |
| Coding | A-coded |
| Mounting options [e.g. front/back panel mounting etc.] | Back panel mounting |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Wire |
| Screw connection [e.g. PG9, M16 etc.] | M12x1 |
| Shielding | Unshielded |
| Wire cross section | AWG24 |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 30 V |
| IP rating | IP67 |
| Current rating signal | 3 A at +40°C |
| Sealing material | FPM |
| Mating cycles | >=100 |
| Wire isolation material | PVC |
| Recommended torque | 0,6 Nm |
| Insulation resistance | >=100M Ohm |
