Part No: 42-01009
Ürün Kısa Açıklaması
Einbaustecker/ -kupplung
M
8
x
1

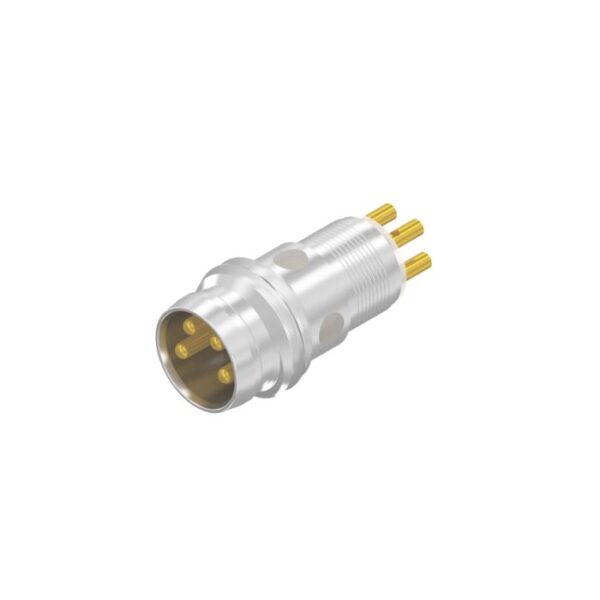

Male connector axial
Metal
4- pos.
A-coded-cod.
General Data
| Size A-side | M8x1 |
| Design | Translucent |
| Size/Number of positions | 4- pos. |
| Contact type | Male connector axial |
| Housing material | Metal |
| Coding | A-coded |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder cup |
| Product type | Einbaustecker/ -kupplung |
Technical Data
| Shielding | Unshielded |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 30 V |
| IP rating | IP67 |
| Current rating signal | 3 A at +40°C |
| Sealing material | NBR |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
