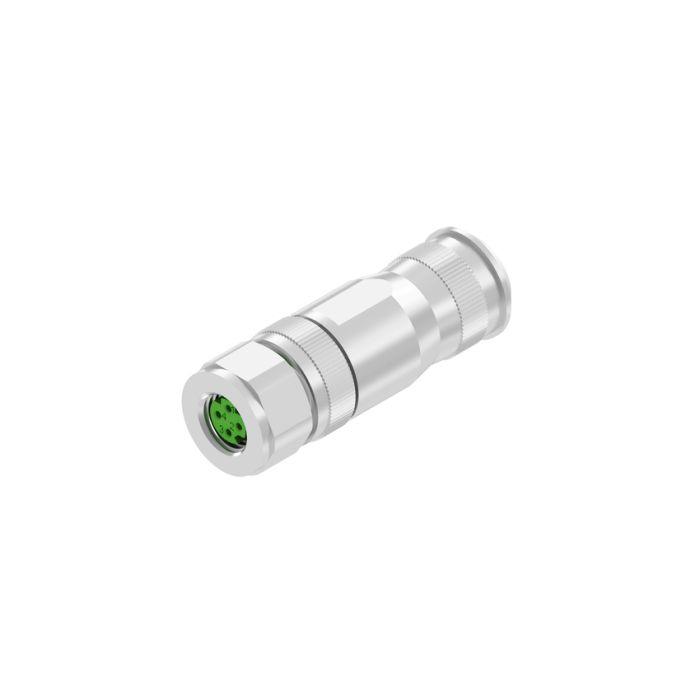

Part No: 42-00141
Ürün Kısa Açıklaması
BUS Systems
Female connector axial
Screw Termination
M
8
x
1
Industrial Ethernet
4- pos.
Shielded
D-coded
Field attachable connectors
0,14 mm² – 0,5 mm²
General Data
| Product type | BUS Systems |
| Style | Field attachable connectors |
| Performance | Cat 5e |
| Bus systems | Industrial Ethernet |
| Size A-side | M8x1 |
| Size/Number of positions | 4- pos. |
| Coding | D-coded |
| Type A-side [ Female, Male] | Female connector axial |
| IP range A-side | IP67 |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
Technical Data
| Working voltage signal | 50 V AC/ 60 V DC |
| Current rating signal | 4 A |
| min. working temperature | -30° C |
| max. working temperature | +85° C |
| Shielding | Shielded |
| Wire cross section | 0,14 mm² – 0,5 mm² |
Material Data
No data available.
