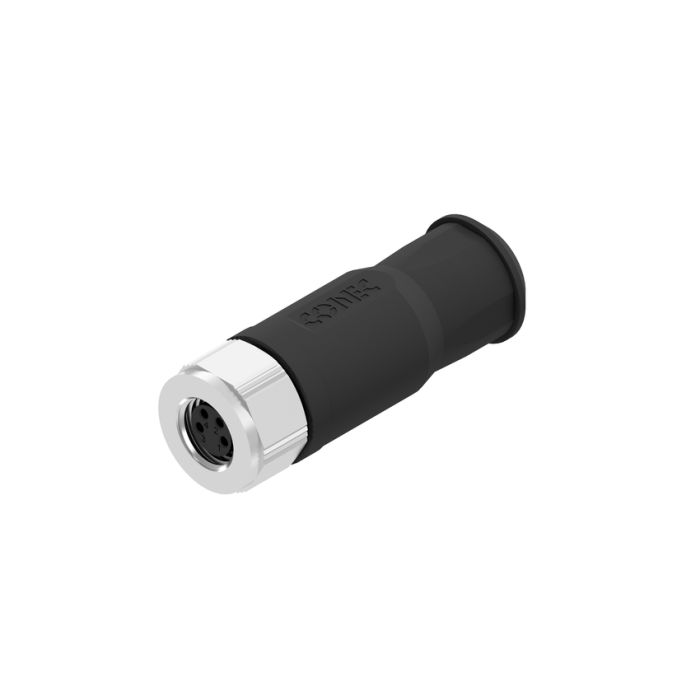

Part No: 42-00008
Ürün Kısa Açıklaması
Connectors field attachable
Female connector axial
Solder cup
M
8
x
14- pos.
Screwable
Unshielded
Zinc die cast
General Data
| Product type | Connectors field attachable |
| Style | Field attachable connectors |
| Size A-side | M8x1 |
| Coding | A-coded |
| Size/Number of positions | 4- pos. |
| Contact type | Female connector axial |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder cup |
Technical Data
| Shielding | Unshielded |
| Wire cross section | max. 0,5 mm² |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 50 V AC/ 60 V DC [UL: 30 V AC/DC] |
| IP rating | IP67 |
| Current rating signal | 3 A at +40°C |
| Sealing material | Silikon |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
