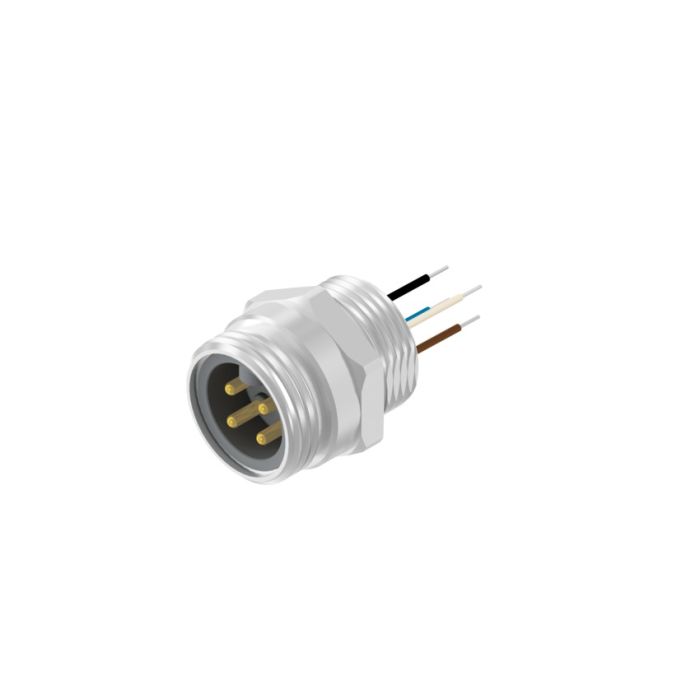

Part No: 41-40001
Ürün Kısa Açıklaması
Sockets
Male connector axial
7/84- pos.
Front panel mounting
Wire
Unshielded
AWG
18
General Data
| Product type | Sockets |
| Style | Sockets |
| Size A-side | 7/8 |
| Size/Number of positions | 4- pos. |
| Length cable/wire | 0,5 m |
| Contact type | Male connector axial |
| Mounting options [e.g. front/back panel mounting etc.] | Front panel mounting |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Wire |
| Screw connection [e.g. PG9, M16 etc.] | PG13,5 |
Technical Data
| Shielding | Unshielded |
| Wire cross section | AWG18 |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 300 V |
| IP rating | IP67 |
| Current rating signal | 10A at +40°C |
| Sealing material | FPM |
| Mating cycles | >=100 |
| Wire isolation material | PVC |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
