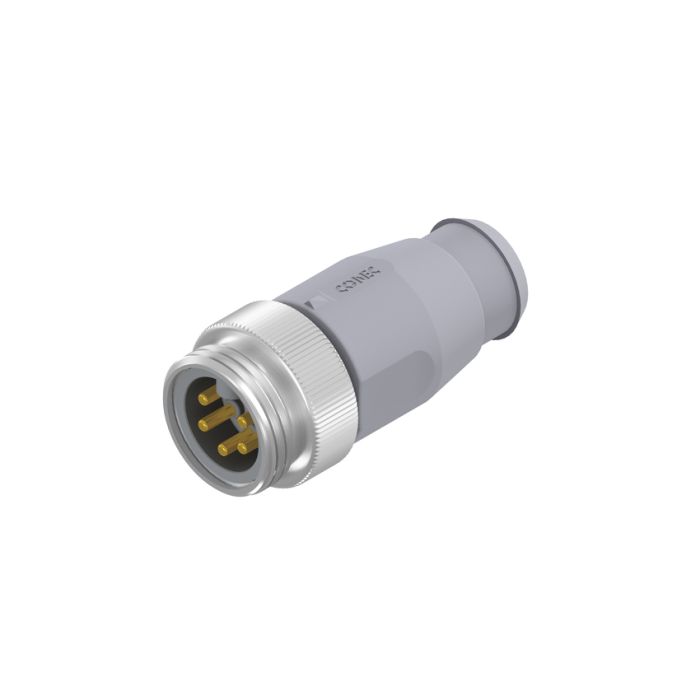

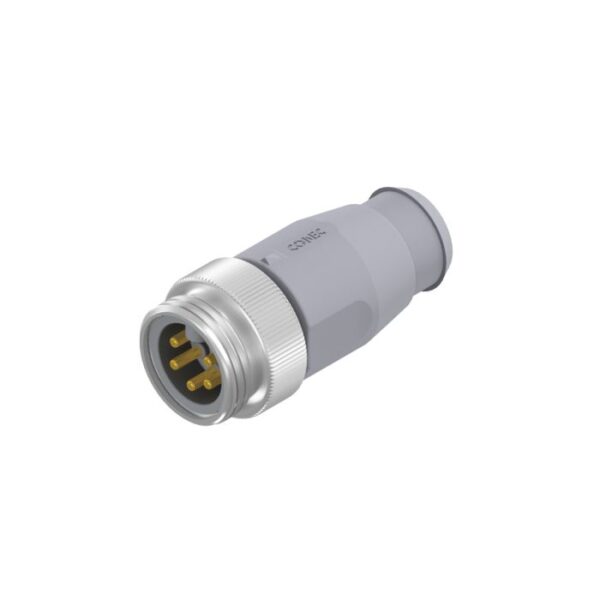

Part No: 41-01304
Ürün Kısa Açıklaması
BUS Systems
7/8
Device
Net
5- pos.
General Data
| Size A-side | 7/8 |
| Size/Number of positions | 5- pos. |
| Locking type | Screwable |
| Bus systems | DeviceNet |
| Product type | BUS Systems |
| Configuration A-side | axial |
Technical Data
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 300 V |
| IP rating | IP67 |
| Current rating signal | 10A at +40°C |
| Sealing material | FPM |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
Material Data
No data available.
