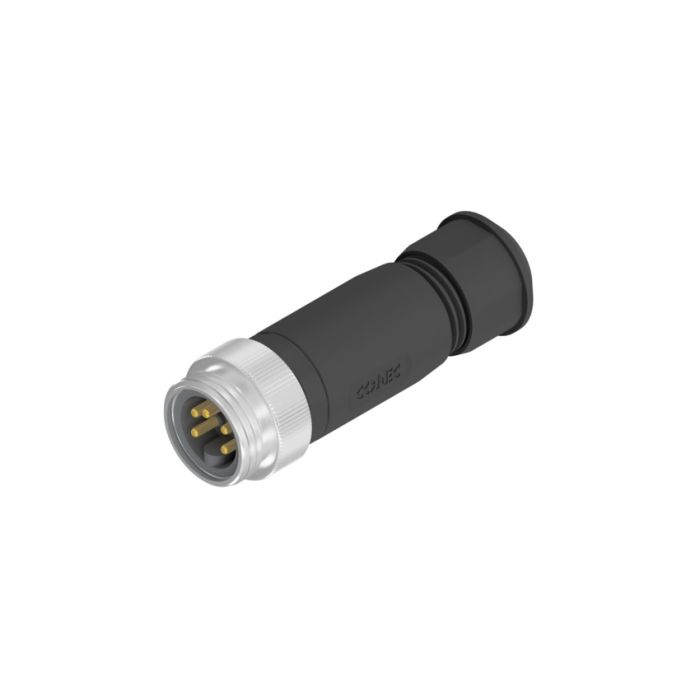

Connectors field attachable
Male connector axial
Screw Termination
7/84-pos.
+PEScrewable
Unshielded
Copper Alloy
| Product type | Connectors field attachable |
| Style | Field attachable connectors |
| Size A-side | 7/8 |
| Size/Number of positions | 4-pos.+PE |
| Contact type | Male connector axial |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Screw Termination |
| Shielding | Unshielded |
| Wire cross section | max. 1,5 mm² |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 300 V |
| IP rating | IP67 |
| Current rating signal | 10A at +40°C |
| Sealing material | Elastomere |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
