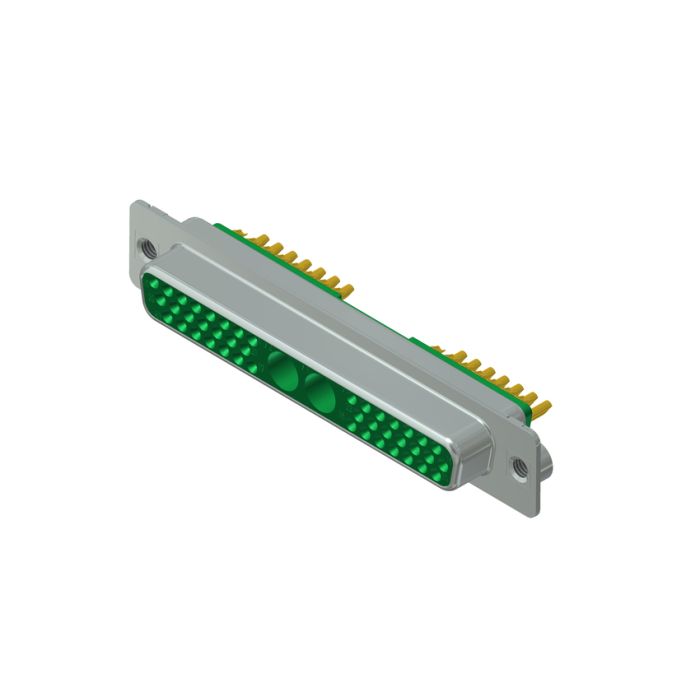

D-SUB Combination Standard
45
W
2 [••••••••••••••••••••••○○•••••••••••••••••••••]Socket
Solder cup
Threaded Insert
M
3
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 45W2 [••••••••••••••••••••••○○•••••••••••••••••••••] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder cup |
| Hardware options termination side | Threaded Insert |
| Thread type | M3 |
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| Insertion force | 160 N |
| Extraction force | 22 N |
