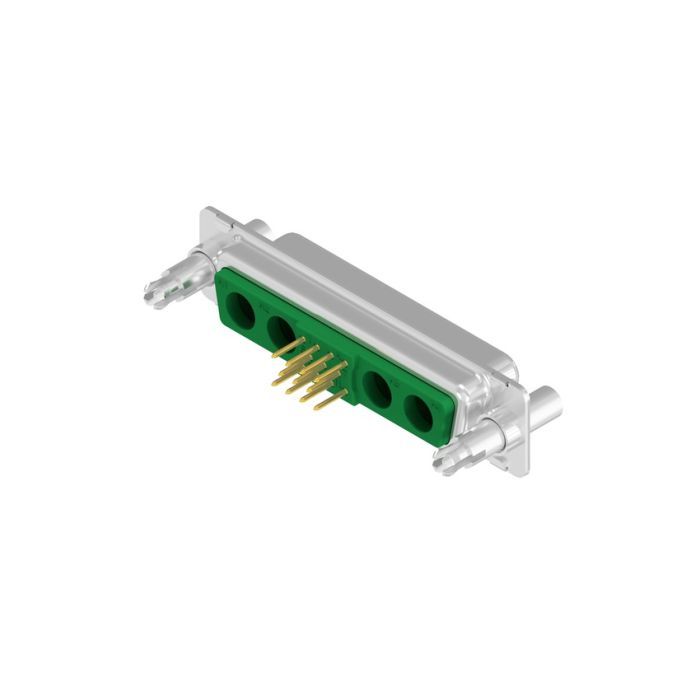

Part No: 3H15W4SAR99F40X
Ürün Kısa Açıklaması
D-SUB Combination Standard
15
W
4 [○○••••••••••• ○○]Socket
Solder pin straight
Threaded rear spacer
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 15W4 [○○••••••••••• ○○] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Hardware options termination side | Threaded rear spacer |
| PCB fastening | PCB-Clip 2,30mm |
| Hardware options mating side | Threaded bolt |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| Extraction force | 30 N |
