Part No: 321WA4SXK99A10X
Ürün Kısa Açıklaması

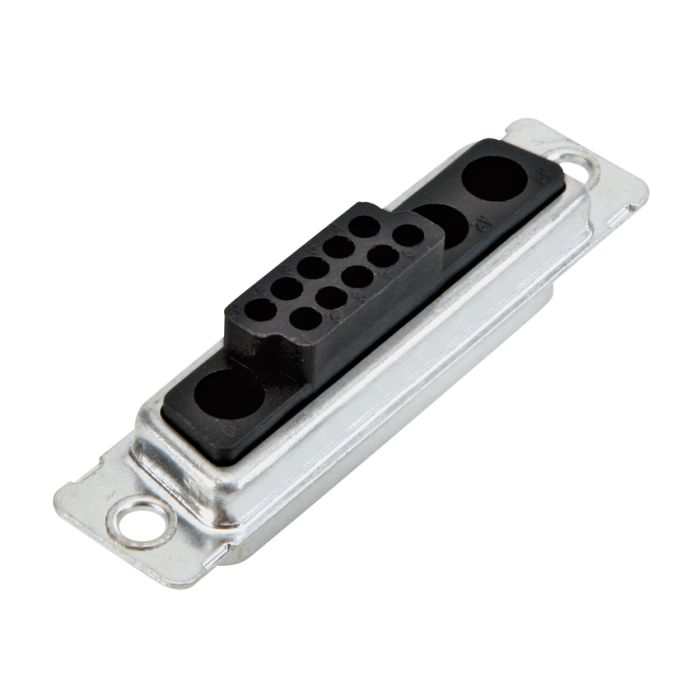

D-SUB Combination Standard
21
WA
4 [○○•••••••••••••••••○○]Socket
Crimp
Through hole
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 21WA4 [○○•••••••••••••••••○○] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Crimp |
| Hardware options termination side | Through hole |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| min. working temperature | -55° C |
| Working voltage signal | 250 V |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Insertion force | 86 N |
| Extraction force | 31 N |
| Contact resistance standard | 8 mOhm |
