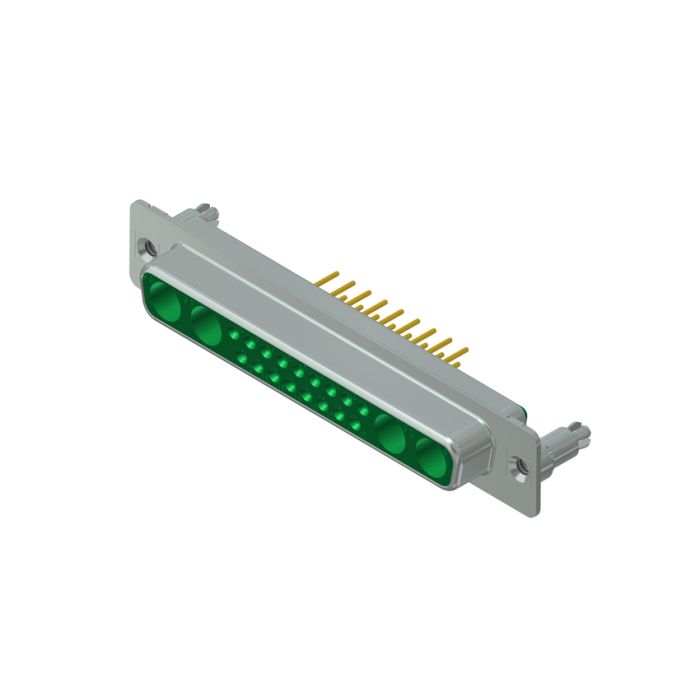

Part No: 321WA4SAR99E20X
Ürün Kısa Açıklaması
D-SUB Combination Standard
21
WA
4 [○○•••••••••••••••••○○]Socket
Solder pin straight
Threaded rear spacer
UNC 4-40
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 21WA4 [○○•••••••••••••••••○○] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Hardware options termination side | Threaded rear spacer |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| min. working temperature | -55° C |
| Working voltage signal | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Insertion force | 86 N |
| Extraction force | 31 N |
| Contact resistance standard | 8 mOhm |
