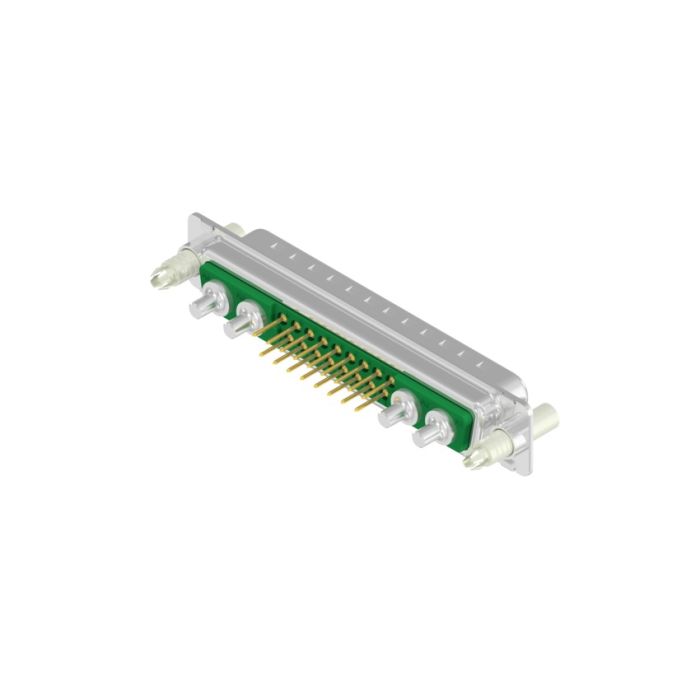

D-SUB Combination Standard
21
WA
4 [○○•••••••••••••••••○○]Plug
Solder pin straight
Threaded rear spacer
M
3
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 21WA4 [○○•••••••••••••••••○○] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin straight |
| Termination power contact | Solder pin straight |
| Hardware options termination side | Threaded rear spacer |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded bolt |
| Thread type | M3 |
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| Quality class | Quality class 1 |
| Mating cycles | 500 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Current rating power | 20 A |
| Insertion force | 86 N |
| Extraction force | 31 N |
| Contact resistance standard | 8 mOhm |
| Power resistance standard | 1 mOhm |
