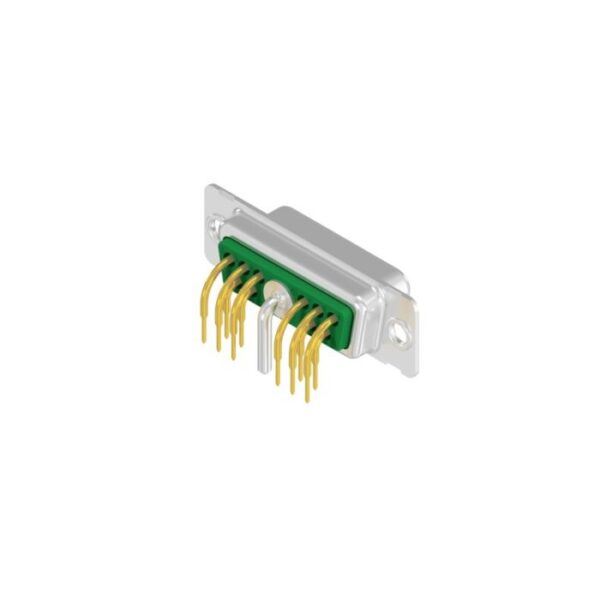

D-SUB Combination Standard
11
W
1 [•••••○•••••]Socket
Solder pin angled .
318″Through hole
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 11W1 [•••••○•••••] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin angled .318″ |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Through hole |
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Current rating power | 15 A |
| Insertion force | 41 N |
| Extraction force | 9 N |
| Contact resistance standard | 8 mOhm |
| Power resistance standard | 1 mOhm |
