Part No: 3008W8PXX99A10X
Ürün Kısa Açıklaması

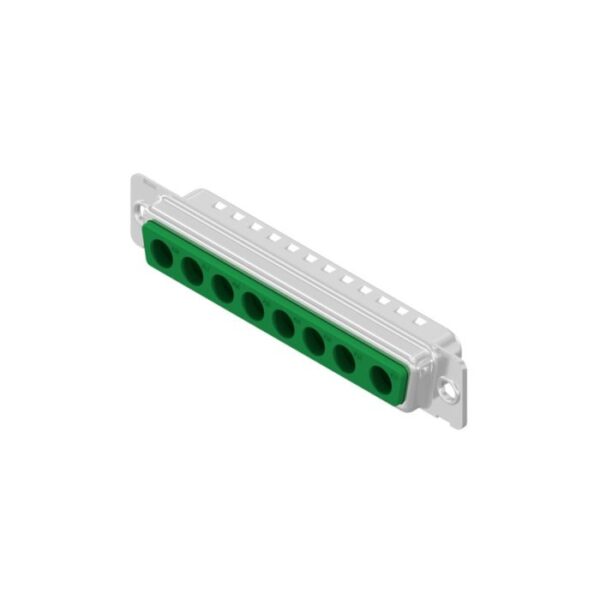

D-SUB Combination Standard
8
W
8 [○○○○○○○○]Plug
Through hole
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 8W8 [○○○○○○○○] |
| Hardware options termination side | Through hole |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| IP rating | IP 20 |
| Insertion force | 56 N |
| Extraction force | 56 N |
