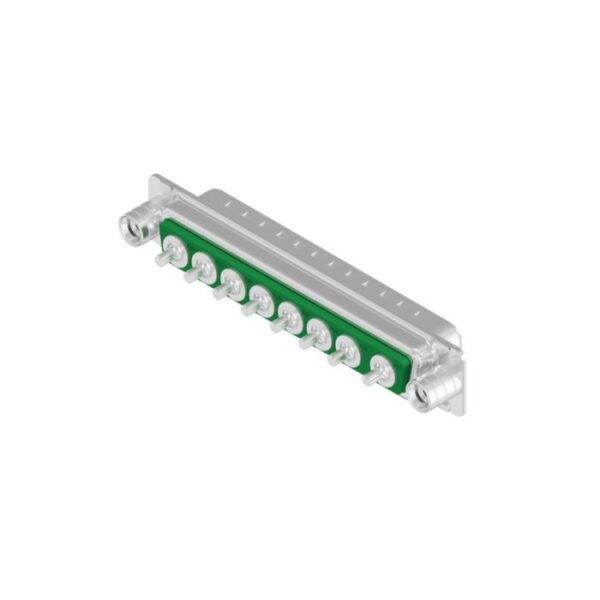

Part No: 3008W8PXX68A50X
Ürün Kısa Açıklaması
D-SUB Combination Standard
8
W
8 [○○○○○○○○]Plug
Threaded rear spacer
UNC 4-40
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 8W8 [○○○○○○○○] |
| Termination power contact | Solder pin straight |
| Hardware options termination side | Threaded rear spacer |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
Technical Data
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating power | 20 A |
| Insertion force | 56 N |
| Extraction force | 56 N |
| Power resistance standard | 1 mOhm |
