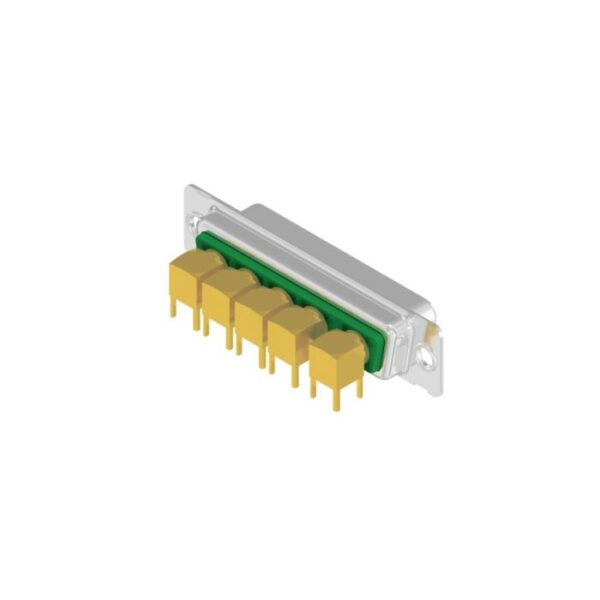

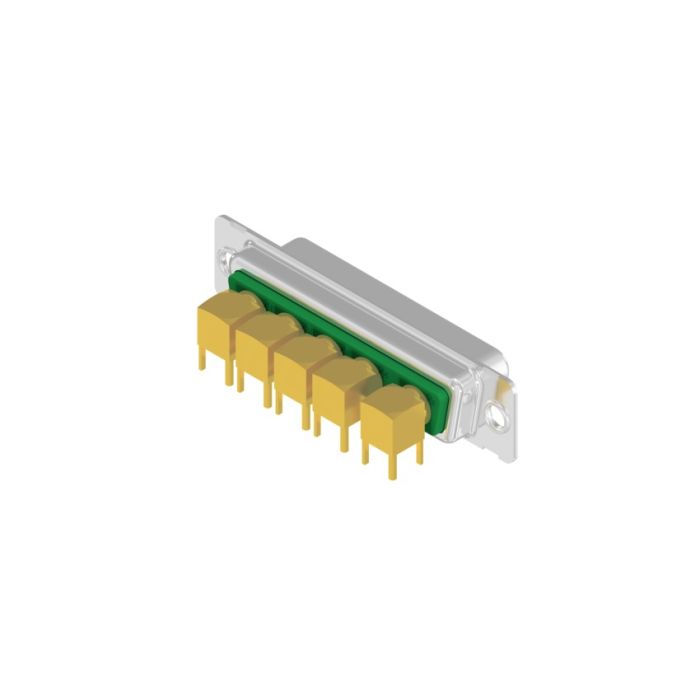

D-SUB Combination Standard
5
W
5 [○○○○○]Socket
Through hole
50 Ohm
Solder pin angled 5
pin
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 5W5 [○○○○○] |
| Termination coax contact | Solder pin angled 5pin |
| Hardware options termination side | Through hole |
| Dielectric with standing voltage coaxial | 750 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage coaxial | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Impedance coax | 50 Ohm |
| Frequency range | 0- 2 Ghz |
| Insertion force | 35 N |
| Extraction force | 35 N |
| Coaxial resistance standard | 2,7 mOhm |
