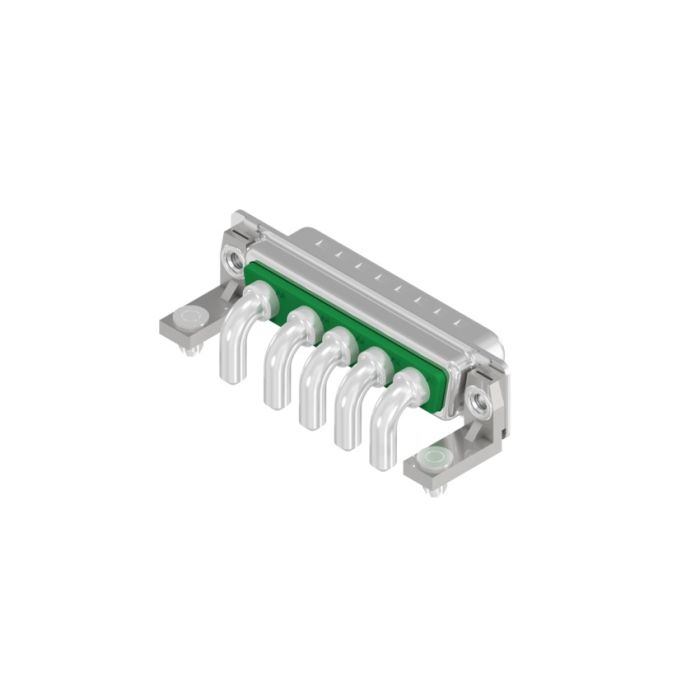

D-SUB Combination Standard
5
W
5 [○○○○○]Plug
Metal bracket
M
3
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 5W5 [○○○○○] |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | M3 |
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Working voltage power | 250 V |
| Quality class | Quality class 1 |
| Mating cycles | 500 |
| IP rating | IP 20 |
| Current rating power | 40 A |
| Insertion force | 35 N |
| Extraction force | 35 N |
| Power resistance standard | 1 mOhm |
