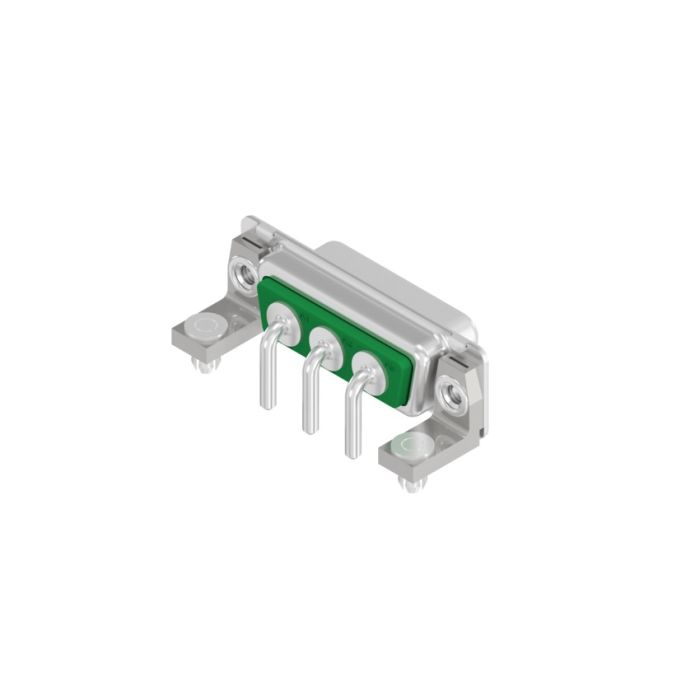

D-SUB Combination Standard
3
W
3 [○○○]Socket
Metal bracket
M
3
| Product type | D-SUB Combination Standard |
| Contact type | Socket |
| Size/Number of positions | 3W3 [○○○] |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | M3 |
| min. working temperature | -55° C |
| IP rating | IP 20 |
| Current rating power | 15 A |
| Insertion force | 21 N |
| Extraction force | 21 N |
