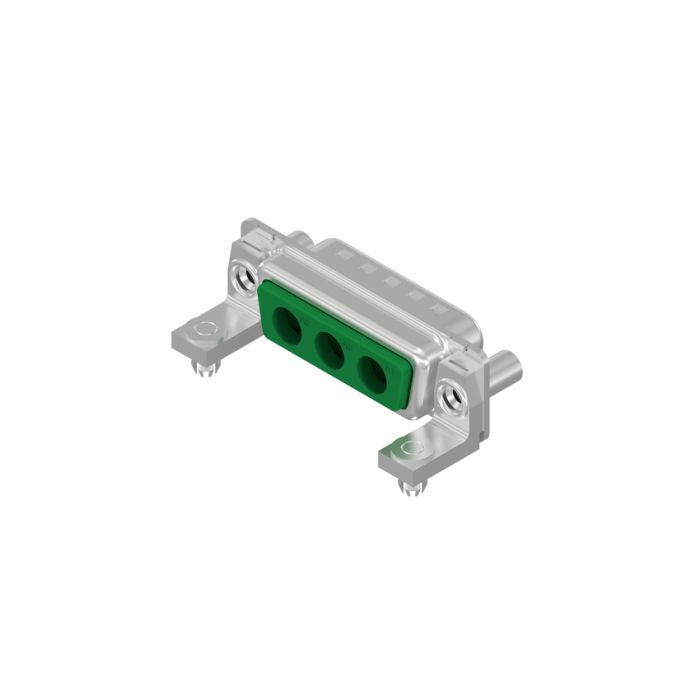

Part No: 3003W3PXX99P40X
Ürün Kısa Açıklaması
D-SUB Combination Standard
3
W
3 [○○○]Plug
Metal bracket
UNC 4-40
General Data
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 3W3 [○○○] |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded bolt |
| Thread type | UNC 4-40 |
Technical Data
| min. working temperature | -55° C |
| IP rating | IP 20 |
| Insertion force | 21 N |
| Extraction force | 21 N |
