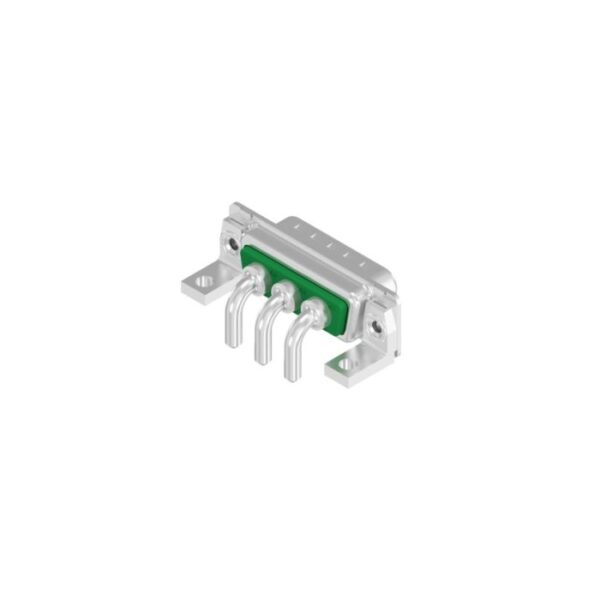

D-SUB Combination Standard
3
W
3 [○○○]Plug
Panel mounted receptacle
Metal bracket
UNC 4-4050 Ohm
Crimp / crimp angled
| Product type | D-SUB Combination Standard |
| Contact type | Plug |
| Size/Number of positions | 3W3 [○○○] |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Panel mounted receptacle |
| Termination power contact | Solder pin angled |
| Termination coax contact | Crimp / crimp angled |
| Dielectric with standing voltage signal | 300 V DC |
| Dielectric with standing voltage power | 1000 V |
| Dielectric with standing voltage coaxial | 750 V |
| Working voltage signal | 60 V |
| Working voltage power | 250 V |
| Working voltage coaxial | 250 V |
| IP rating | IP 20 |
| Current rating signal | 1 A |
| Current rating power | 20 A |
| Impedance coax | 50 Ohm |
| Frequency range | 0- 2 Ghz |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
