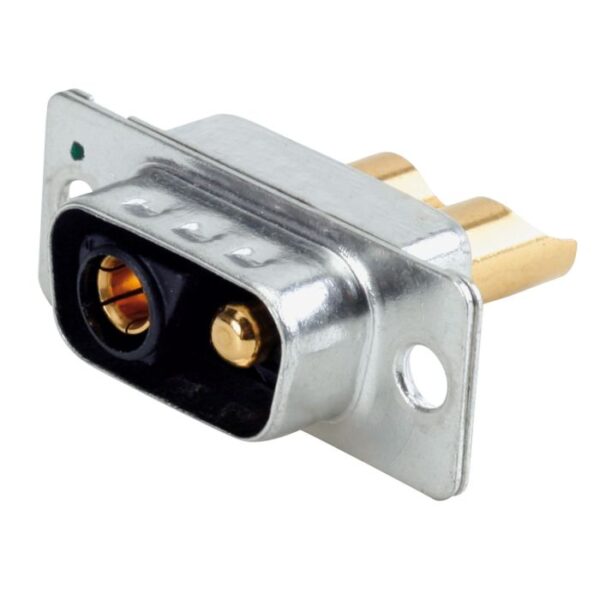

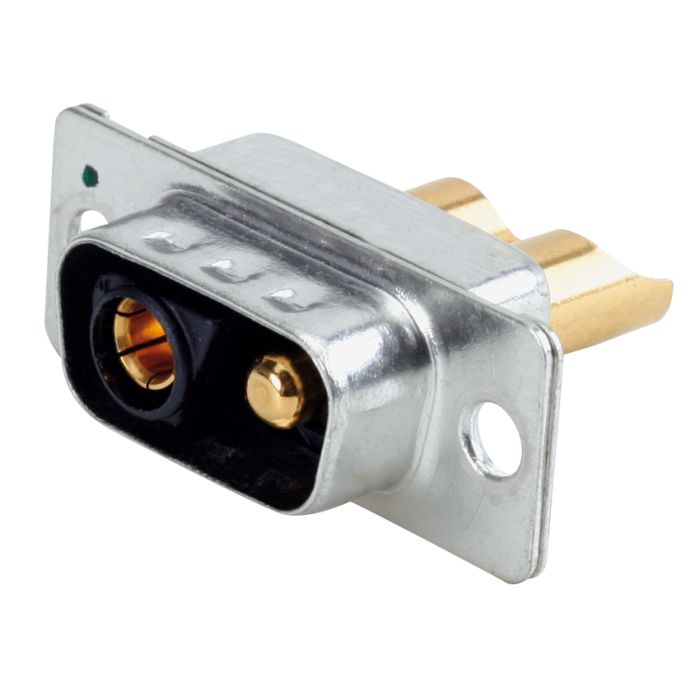

Part No: 2F2CPA22S41A10X
Ürün Kısa Açıklaması
Filter Combination D-SUB
2
W
2
C [○/○]Plug
C-Filter
47 n
FThrough hole
General Data
| Contact type | Plug |
| Size/Number of positions | 2W2C [○/○] |
| Termination power contact | Solder cup |
| Hardware options termination side | Through hole |
| Mounting style | Straight |
Technical Data
| Dielectric with standing voltage power | 707 V DC |
| Capacitor value power contact | 47 nF |
| Power contact cross section | AWG 16- 20 |
| Working voltage power | 100 V DC |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating power | 10 A |
| Insertion force | 14 N |
| Extraction force | 14 N |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Filter type | C |
