Part No: 24-000071
Ürün Kısa Açıklaması

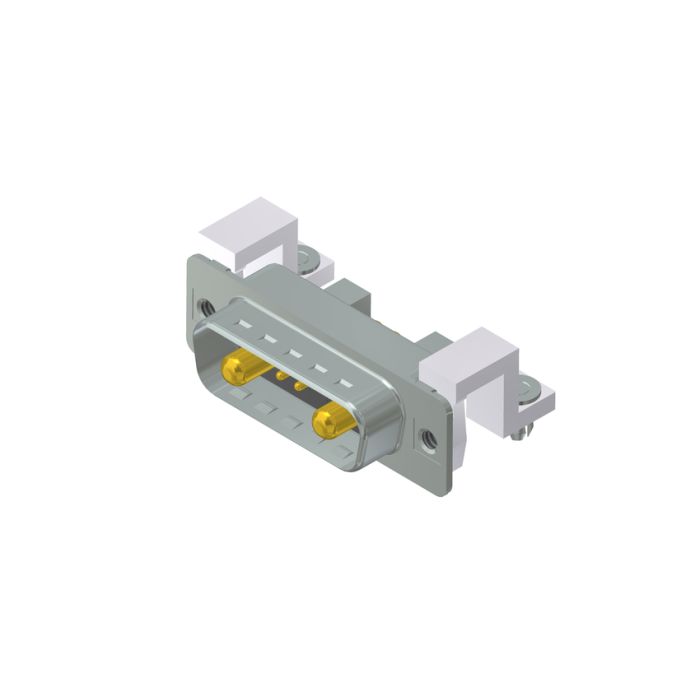

Filter Combination D-SUB
7
W
2 [○•••••○]Plug
C-Filter
54 n
FMetal bracket
General Data
| Contact type | Plug |
| Size/Number of positions | 7W2 [○•••••○] |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin angled |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip 1,60mm |
| Hardware options mating side | Threaded insert |
| Mounting style | Angled |
Technical Data
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| Capacitor value power contact | 54 nF |
| Working voltage signal | 100 V DC |
| Working voltage power | 100 V DC |
| Quality class | Quality class 1 |
| Mating cycles | 500 |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Current rating power | 24 A |
| Insertion force | 31 N |
| Extraction force | 15 N |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Filter type | C |
