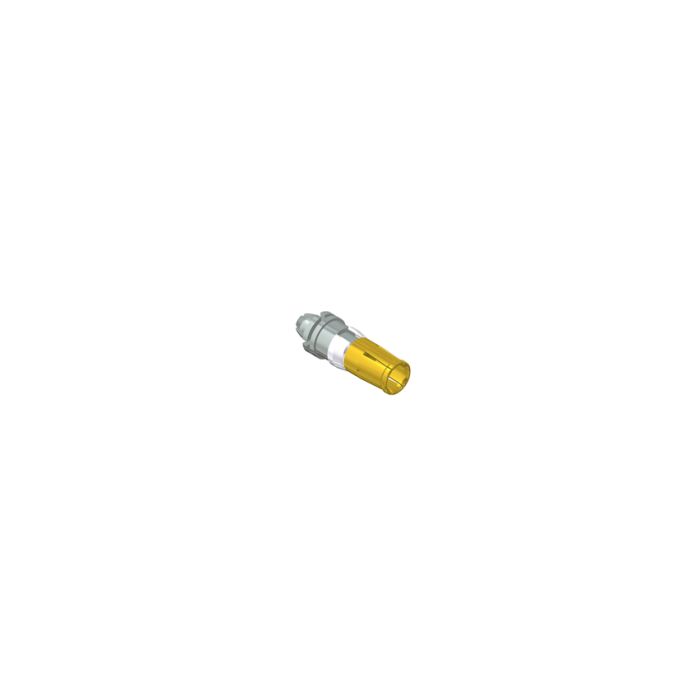

Part No: 132C00229A
Ürün Kısa Açıklaması
Combination D-SUB contacts
Socket
M
350 Ohm
Crimp / crimp angled
General Data
| Product type | Combination D-SUB contacts |
| Contact type | Socket |
| PCB fastening | PCB-Clip |
| Thread type | M3 |
| Termination power contact | Press-fit |
| Termination coax contact | Crimp / crimp angled |
Technical Data
| Dielectric with standing voltage signal | 300 V DC |
| Dielectric with standing voltage power | 707 V DC |
| Dielectric with standing voltage coaxial | 750 V |
| Working voltage signal | 60 V |
| Working voltage power | 100 V DC |
| Working voltage coaxial | 250 V |
| IP rating | IP 20 |
| Current rating signal | 1 A |
| Current rating power | 30 A |
| Impedance coax | 50 Ohm |
| Frequency range | 0- 2 Ghz |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Quality class | Quality class 1 |
| Mating cycles | 500 |
