Part No: 131A16019X
Ürün Kısa Açıklaması

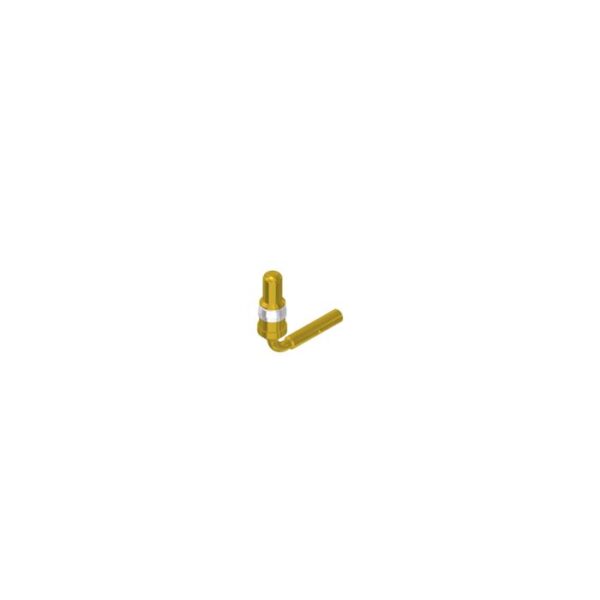

Combination D-SUB contacts
Plug
Crimp angled
General Data
| Product type | Combination D-SUB contacts |
| Contact type | Plug |
| Termination power contact | Crimp angled |
Technical Data
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Current rating power | 10 A |
| Insertion force | 7 N |
| Extraction force | 5 N |
| Power resistance standard | 1 mOhm |
