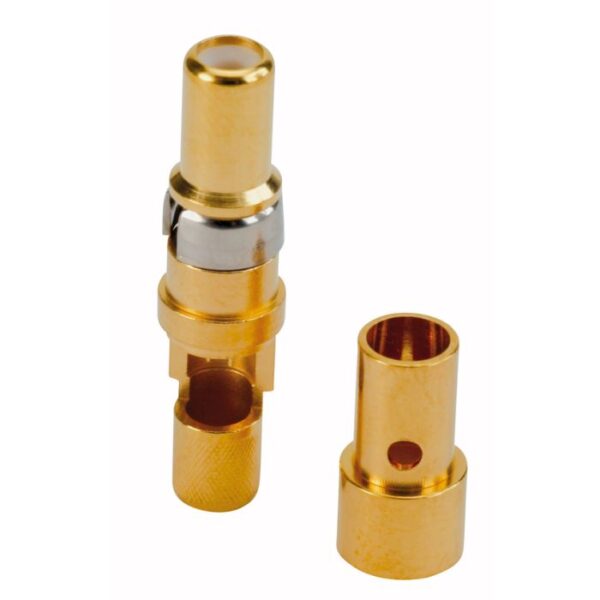

Combination D-SUB contacts
Socket
50 Ohm
Crimp / solder straight
| Product type | Combination D-SUB contacts |
| Contact type | Socket |
| Termination coax contact | Crimp / solder straight |
| Dielectric with standing voltage coaxial | 750 V |
| min. working temperature | -55° C |
| Coaxial cable type | 174U, 188AU, 316U |
| Working voltage coaxial | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Impedance coax | 50 Ohm |
| Frequency range | 0- 2 Ghz |
| Insertion force | 7 N |
| Extraction force | 7 N |
| Coaxial resistance standard | 2,7 mOhm |
