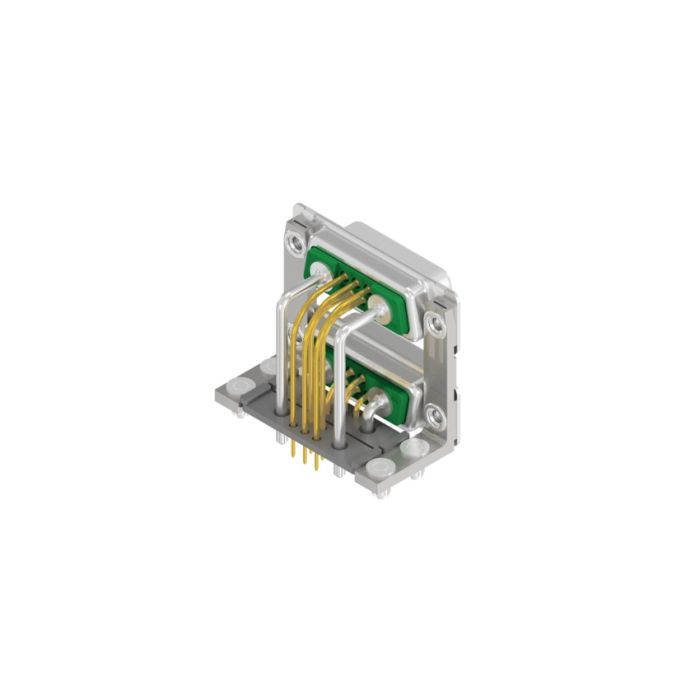

D-SUB Combination Dual Port
7
W
2/7
W
2
Dual port socket upper / Socket bottom
Solder pin angled
Metal bracket
UNC 4-40
| Product type | D-SUB Combination Dual Port |
| Contact type | Dual port socket upper / Socket bottom |
| Port 1 | Invertiert |
| Size/Number of positions | 7W2/7W2 |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip 1,60mm |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder pin angled |
| Termination power contact | Solder pin angled |
| Dielectric with standing voltage signal | 1000 V |
| Dielectric with standing voltage power | 1000 V |
| Working voltage signal | 250 V |
| Working voltage power | 250 V |
| IP rating | IP 20 |
| Current rating signal | 7,5 A UL 5 A CSA,VDE |
| Current rating power | 20 A |
| min. working temperature | -55° C |
| max. working temperature | +125° C |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
