Part No: 13-001703
Ürün Kısa Açıklaması

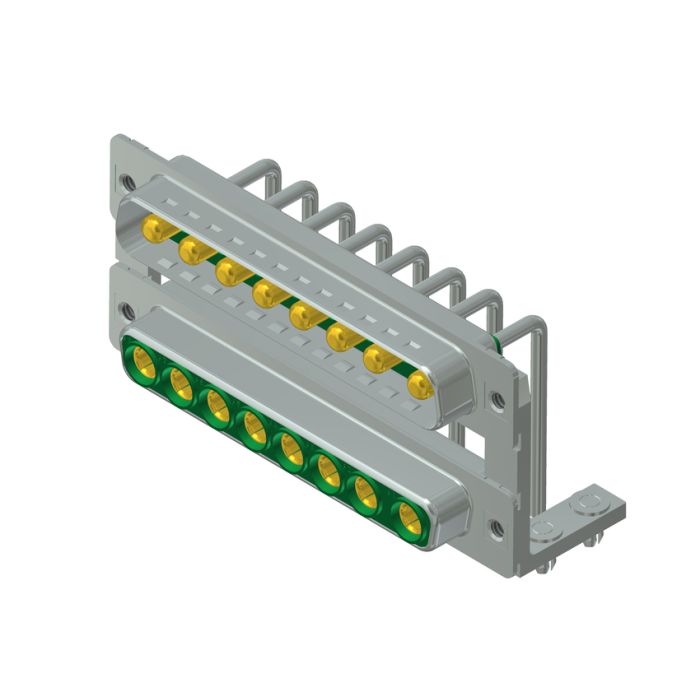

D-SUB Combination Dual Port
8
W
8/8
W
8
Dual port socket upper / Plug bottom
Metal bracket
UNC 4-40
General Data
| Product type | D-SUB Combination Dual Port |
| Contact type | Dual port socket upper / Plug bottom |
| Size/Number of positions | 8W8/8W8 |
| Termination power contact | Solder pin angled |
| Hardware options termination side | Metal bracket |
| PCB fastening | PCB-Clip |
| Hardware options mating side | Threaded insert |
| Thread type | UNC 4-40 |
| Port 1 | Invertiert |
Technical Data
| Dielectric with standing voltage power | 1000 V |
| min. working temperature | -55° C |
| Working voltage power | 250 V |
| Quality class | Quality class 3 |
| Mating cycles | 50 |
| IP rating | IP 20 |
| Insertion force | 56 N |
| Extraction force | 56 N |
| Power resistance standard | 1 mOhm |
